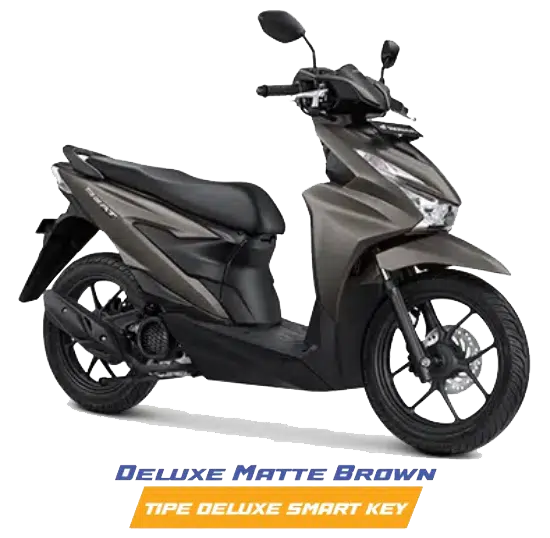

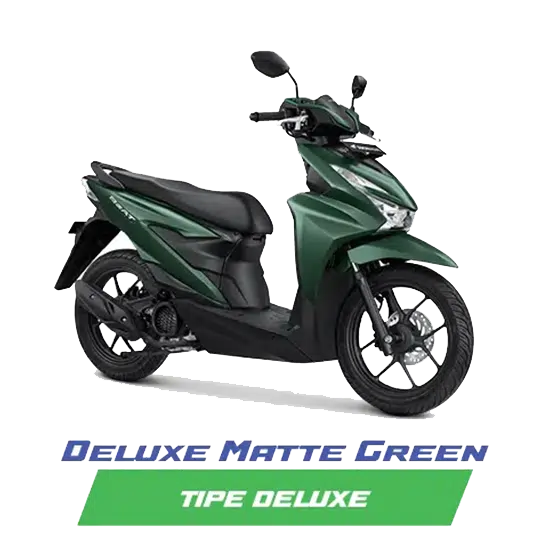

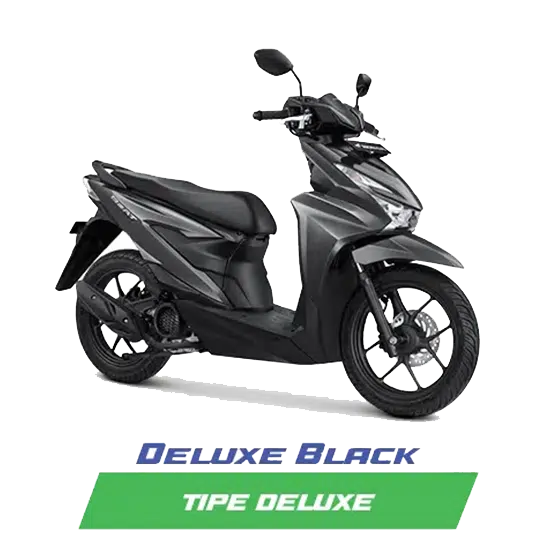

HONDA BeAT
Honda BeAT Feature
Luggage fit for 12L
Motorcycle trunk space for
more stuff with larger trunk
capacity.
Automatic Stand Side
The engine cannot be
started when the side stand
is in the down position, thus
preventing the rider from
forgetting to raise the side
stand.
LED Lighting System
The lighting system with
modern LED technology
makes your appearance
even cooler.
Power Charger
Never run out of battery
even on the go with the
Charger feature *Maximum
power 12 W (12 V 1 A)
Functional Hook
Carrying items is easier with
the hanger at the front.
Smart Key System
Advanced remote
technology, which no
longer requires a
mechanical key to operate
the handlebar lock/start the
engine. *Available on the
Deluxe Smart Key type
Automatic Locking Lever
Prevents the motorbike
from jumping when the
engine is turned on and is
more comfortable when
stopping on uphill or
downhill roads.
Anti Theft Alarm
Anti Theft Alarm security
system, to provide
additional security when
parking a motorbike
*Available on CBS and
Deluxe CBS-ISS types
Combined Digital Panel Meter
More stylish with a
sophisticated meter panel
equipped with an ECO
indicator light to facilitate
driving information.
Honda BeAT Specification
| Engine | |
|---|---|
| Engine Type | 4 – Stroke, SOHC, eSP |
| Bore x Stroke | 47.0 x 63.1 mm |
| Stroke Volume | 109.5cc |
| Compression Ratio | 10.0 : 1 |
| Maximum Power | 6.6 kW (9.0 PS) / 7,500 rpm |
| Maximum Torque | 9.2 N.m (0.94 kgf.m) / 6,000 rpm |
| Clucth | Automatic, Centrifugal, Dry Type |
| Starter | Electric Starter and Kick Starter (CBS Type) |
| Electric (Deluxe & Deluxe Smart Key Type) | |
| Spark Plug | NGK MR9C-9N |
| Fuel System | Injection (PGM-FI) |
| Transmission | Automatic, V-Matic |
| Ignition System | Full Transisterized |
| Type | |
|---|---|
| Frame Type | Backbone – eSAF (enhance Smart Architecture Frame) |
| Front Suspension | Type Telescopic |
| Rear Suspension | Type Swing Arm with Single Shock Absorber |
| Front Tire Size | 80/90 - 14 M/C 40P Tubeless |
| Rear Tire Size | 80/90 - 14 M/C 40P Tubeless |
| Front Brake | Hydraulic Disc with Single Piston |
| Rear Brake | Drum |
| Braking System | Combi Brake System |
| Dimension | |
|---|---|
| Wheelbase | 1,255 mm |
| Lowest ground clearance | 148 mm |
| Length X Width X Height | 1876 x 669 x 1080 mm |
| Empty weight | 88 kg (CBS type) |
| 87 kg (Deluxe & Deluxe Smart Key type) | |
| Seat height | 742 mm |
| Electricity System | |
|---|---|
| Electricity | MF 12V-3Ah (Tipe CBS) |
| Ignition System | MF 12V-5Ah (Deluxe & Deluxe Smart Key Type) |
