HONDA CB650R

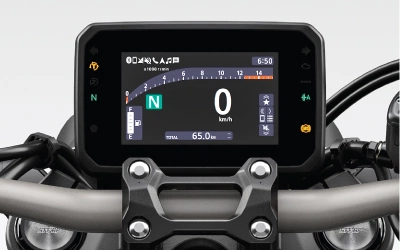

Full Digital Panel Meter

Honda Selectable Torque
Control

Inverted Front Suspension

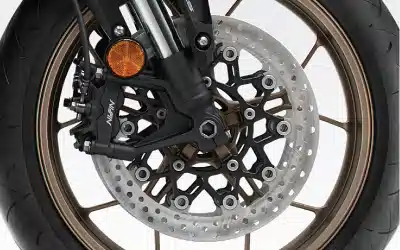

Floating Disc Brake With
ABS

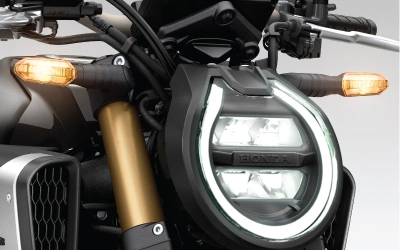

LED Headlight

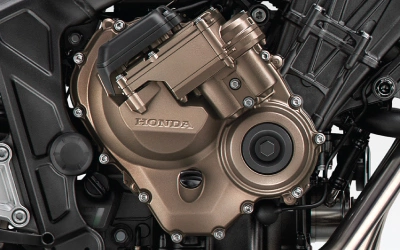

Inline Four Cylinder With
Assist-Slipper Clucth

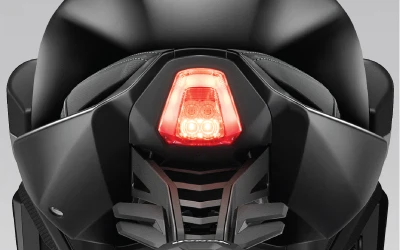

LED Taillight

Hover over a point to see details

Honda CB650R Specification

Engine
Engine TypeLiquid-Cooled, 4-Stroke, DOHC Four Cylinder
Displacement 648,72 cc
Fuel Supply System PGM-FI (Programmed Fuel Injection System)
Rated Power4,2 kW
Bore × Stroke67 x 46 mm
Compression Ratio11,6 : 1
Max. Power66,5 kW/11.000 rpm
Max. Torque60,7 Nm/8.000 rpm
TransmissionConstant mesh, 6 Speed
Starting SystemElectric
Clucth SystemWet, Multiple with Coil Spring
Oil Capacity2,3 L (Periodic Exchange)
Frame & Footer
FrameDiamond, Steel
Front Tires120/70R17M/C (58W)
Rear Tire180/55ZR17M/C (73W)
Front Brake Type Hydraulic, Double 310mm Disc with Four Piston Calipers
Rear Brake Type Hydraulic, Single 240mm Disc with Single Piston Calipers
Braking SystemABS 2 Channel
Front Suspension Showa 41 mm Inverted Telescopic Fork
Rear Suspension Aluminum Swing Arm, Adjustable Monoshock
Dimension
Dimension2.128 x 784 x 1.076 mm
Fuel Tank Capacity15,4 L
Ground clearance139 mm
Curb weight203 Kg
Seat Height810000
Wheelbase1,310 mm
Electricity System
Ignition TypeFull Transisterized, Battery
Spark PlugNGK IMR9E-9HES
Front HeadlightHi 9,3 W x 1 (LED)
Rear HeadlightLow 9,3 W x 1 (LED)
