HONDA CRF250 RALLY
HONDA CRF250 RALLY FEATURES

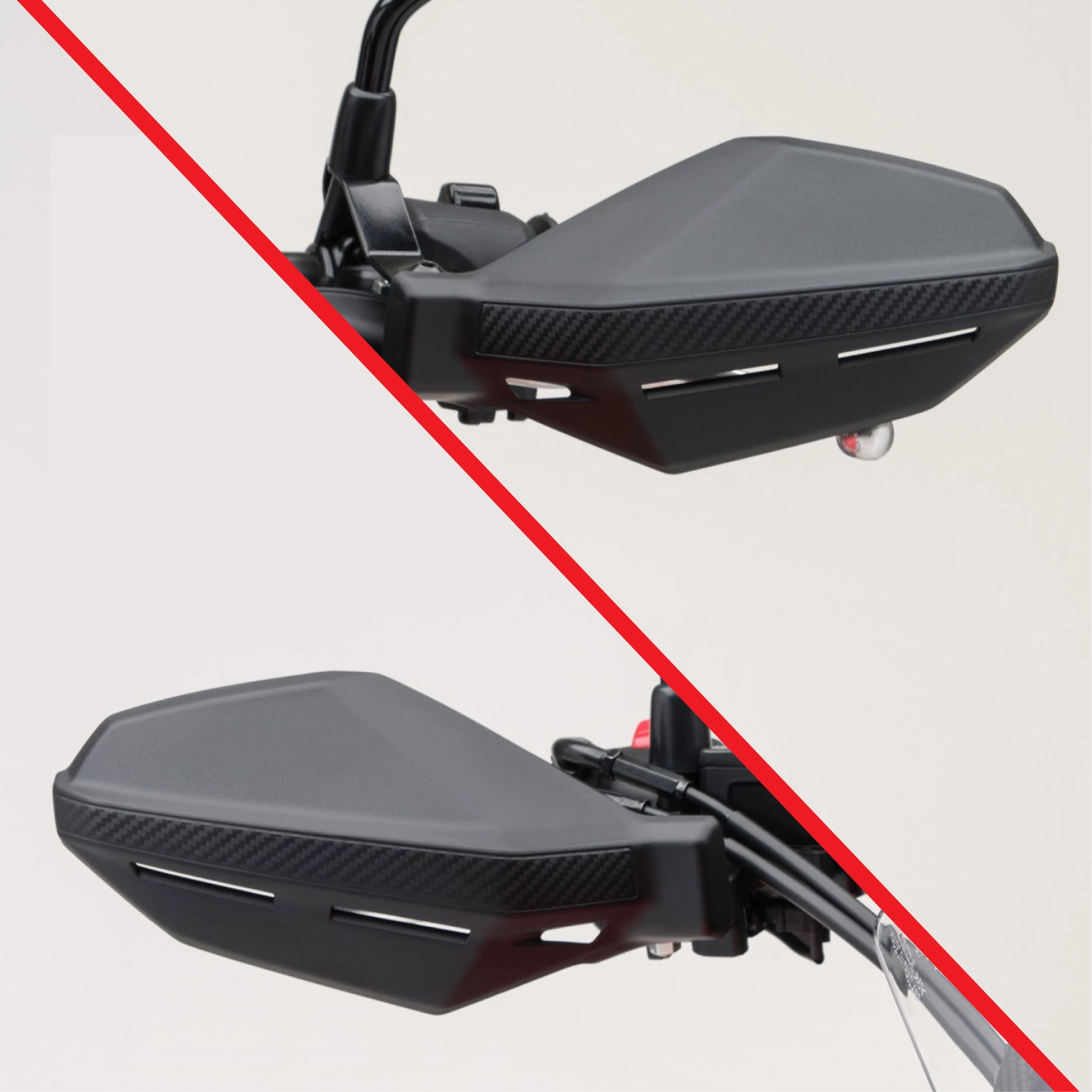

Handguard
Keeping riders safe from collisions

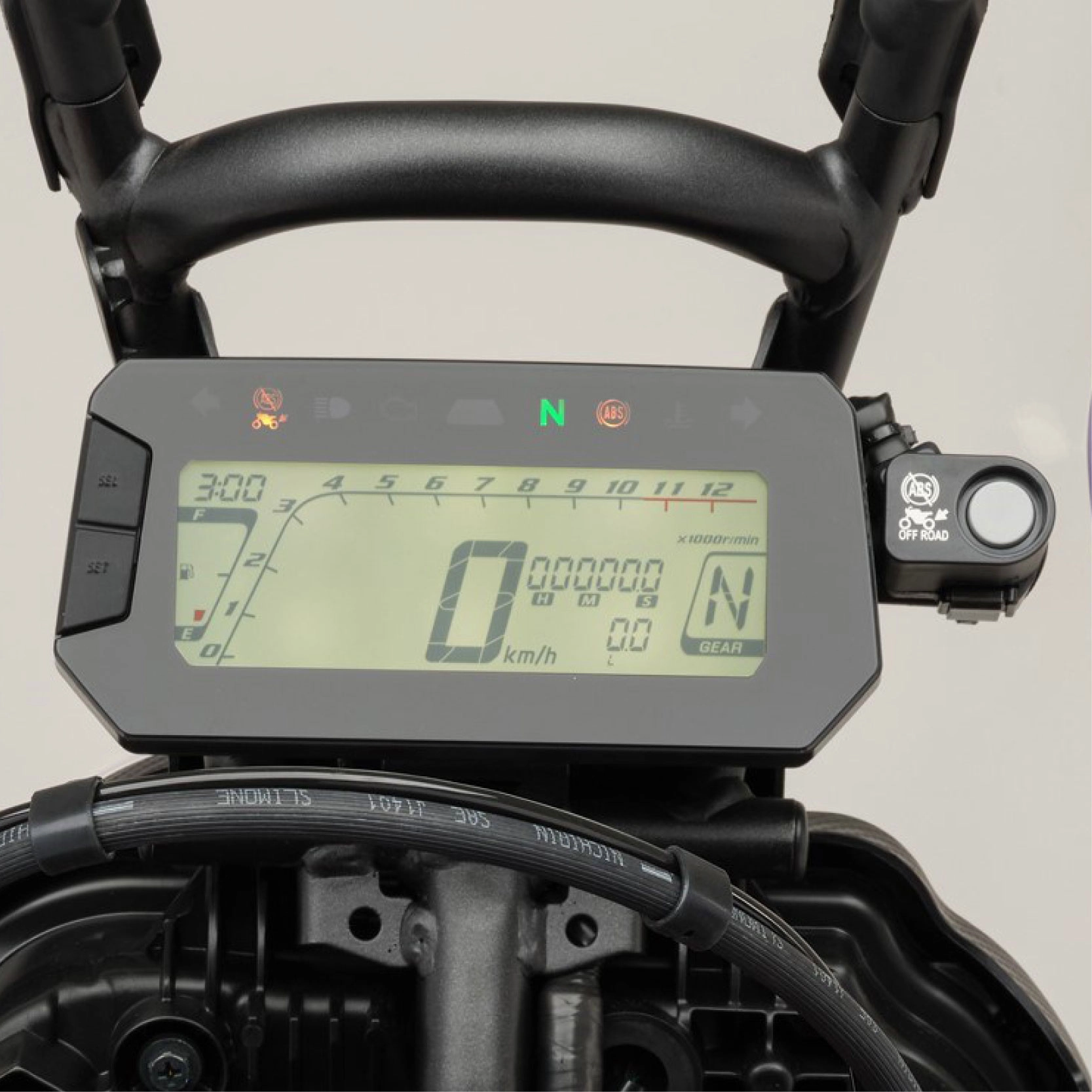

Full Digital Panel Meter
The latest full digital indicator panel technology presents vehicle information with a sportier and more modern appearance.

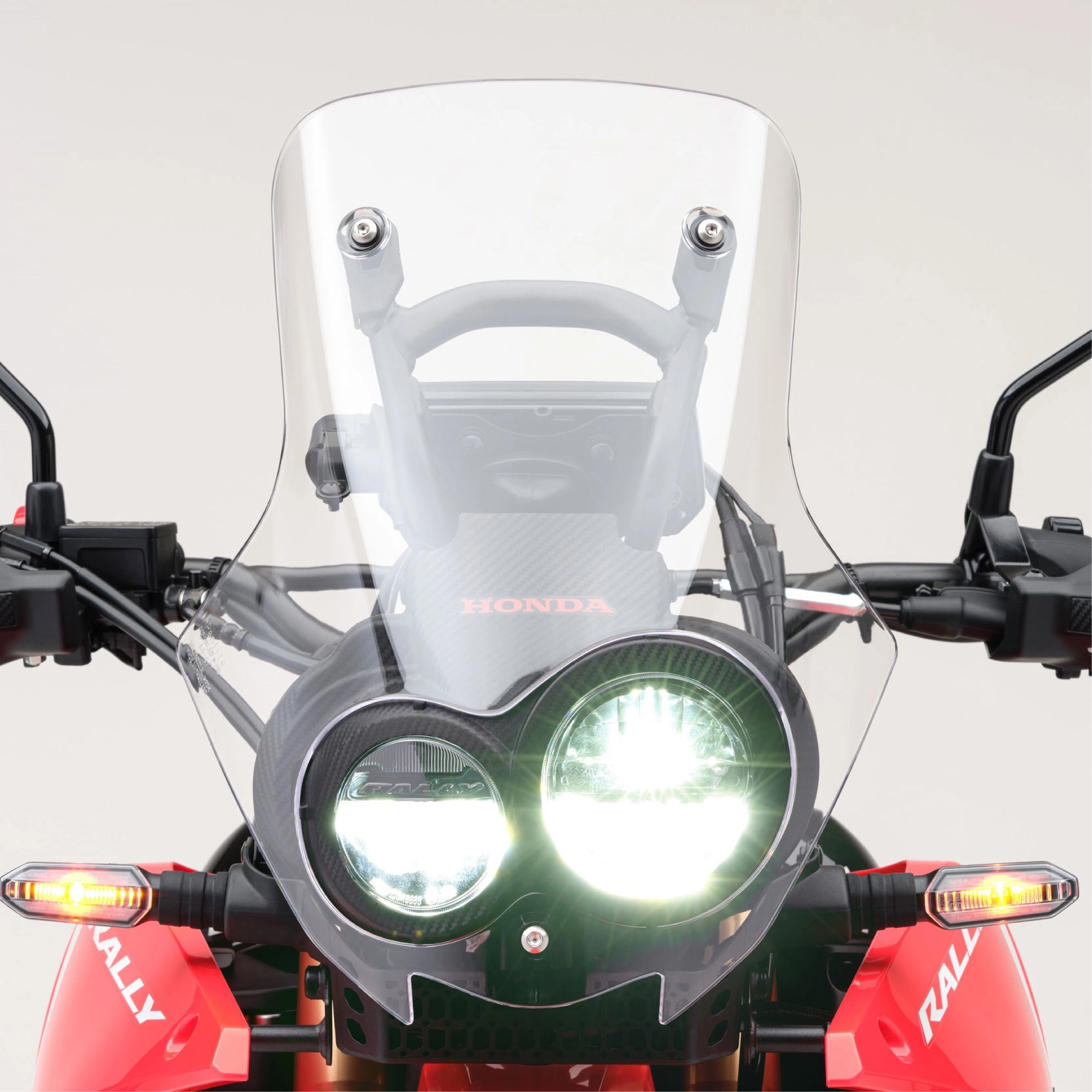

LED Headlight
LED lighting system on the headlight for better illumination capabilities.
Fuel Tank
Larger fuel tank capacity

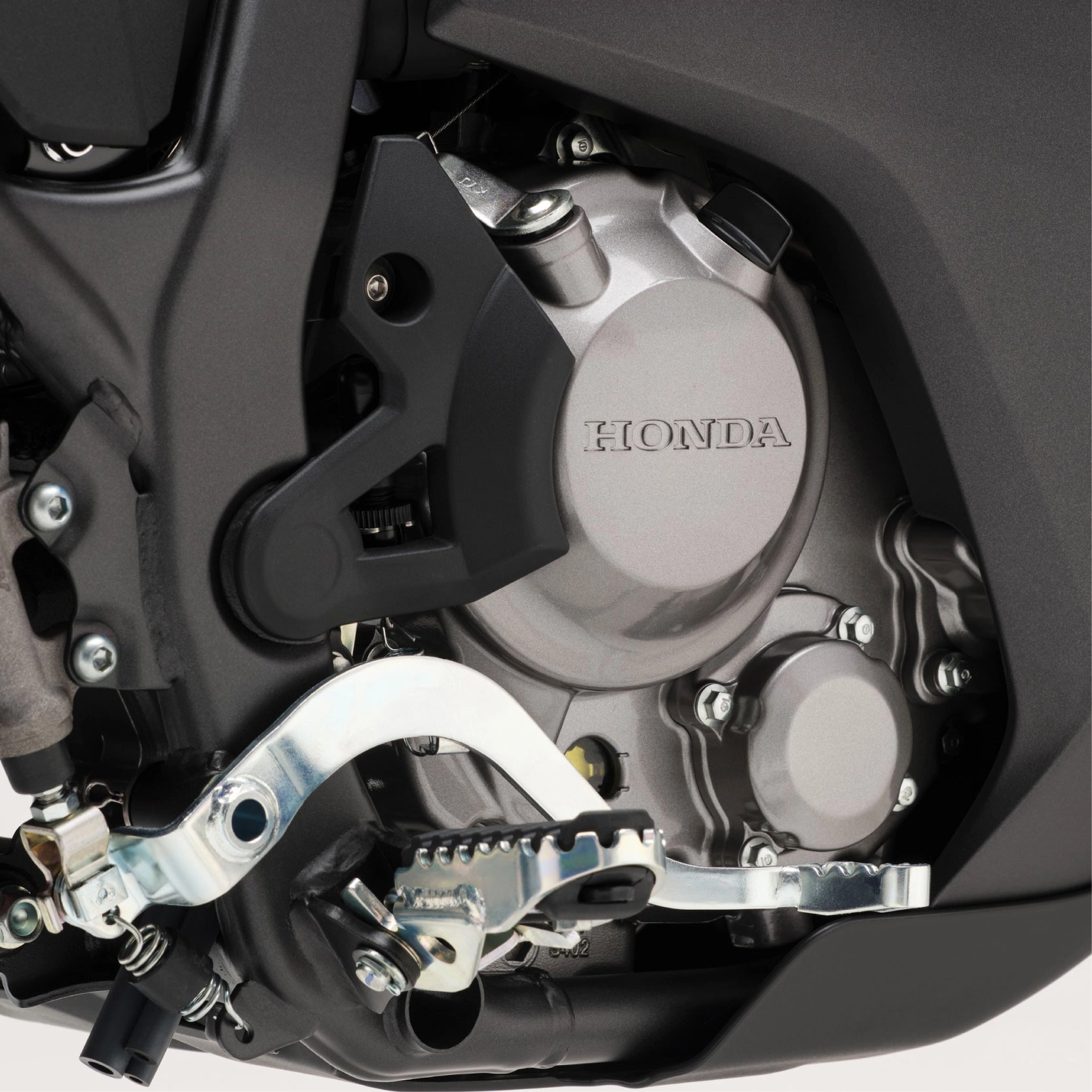

250cc DOHC Engine With Assist/Slipper Clutch
Technology that functions to provide comfort while driving, reducing engine brake impact and making the clutch lever pull lighter.
Aluminum Swing Arm
Made of aluminum, it's lighter and more durable, giving it a sportier, more dashing, more robust, and more impressive appearance.

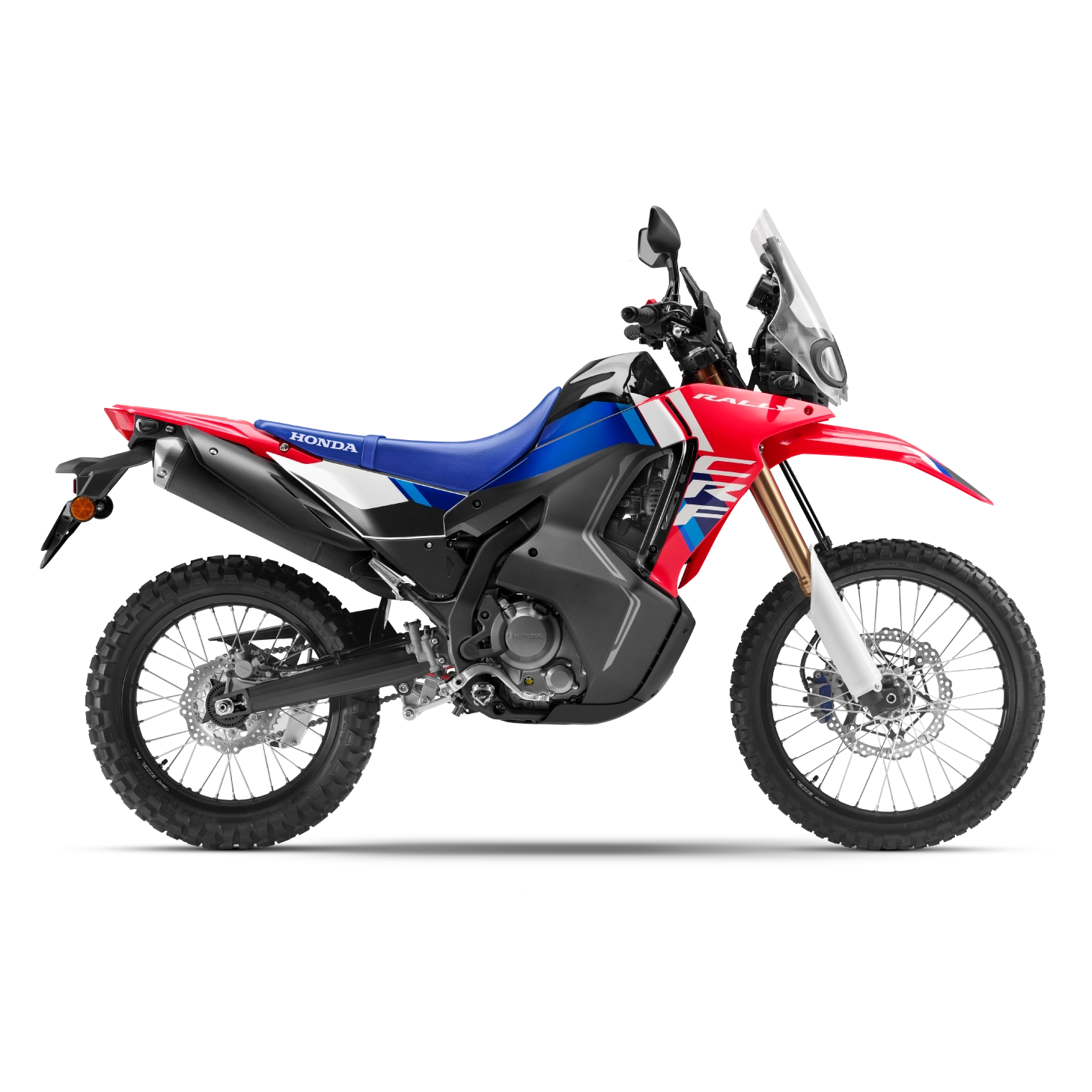

- Hover over a point to see details
Honda CRF250 Rally Specification
| Engine | |
|---|---|
| Engine Type | 4-Stroke, SOHC, Single Cylinder |
| Stroke Volume | 149.15 cc |
| Fuel System | Injection (PGM-FI) |
| Bore x Stroke | 57.3 x 57.8 mm |
| Transmission Type | 5 Speed Levels |
| Compression Ratio | 9.5:1 |
| Maximum Power | 9,51 kW(12,91 PS)/8.000 rpm |
| Maximum Torque | 12,43 Nm(1,27 kgf.m)/6.500 rpm |
| Starter | Pedal dan Elektrik |
| Clucth | Manual, Multiplate Wet Clutch |
| Cooling System | Air Conditioner |
| Gear Shift Pattern | 1-N-2-3-4-5 |
| Frame & Footer | |
|---|---|
| Frame | Semi-Double Cradle, Steel |
| Front Suspension | Showa, 43mm Inverted Telescopic |
| Rear Suspension | Showa Pro-Link |
| Front Tire | 80/100-21M/C (51P) |
| Rear Tire | 120/80-18M/C (62P) |
| Front Brake | 256mm Wavy Disc Brake, Dual Piston Calipers |
| Rear Brake | 220mm Wavy Disc Brake, Single Piston Calipers |
| Dimension | |
|---|---|
| Length X Width X Height | 2.230 X 920 X 1.415 |
| Seat height | 885mm |
| Wheelbase | 1,455mm |
| Lowest ground clearance | 275mm |
| Curb weight | 152kg |
| Fuel Capacity | 12,8 liter |
| Oil Lubricant Capacity | 1.35 liter |
| Electricity System | |
|---|---|
| Electricity | 12V-7Ah (10h) |
| Ignition System | Full Transisterized |
| Spark Plug Type | NGK SIMR8A9 |
| Headlight | Hi 26W x 1 ; Low 13W x 1 |
