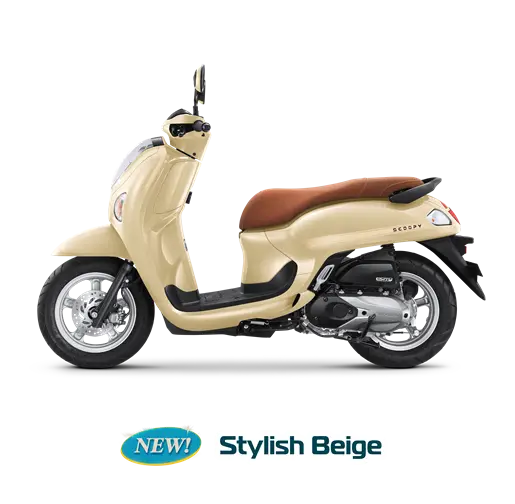

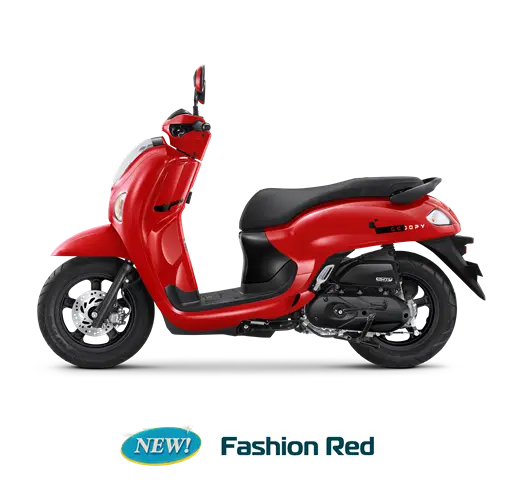

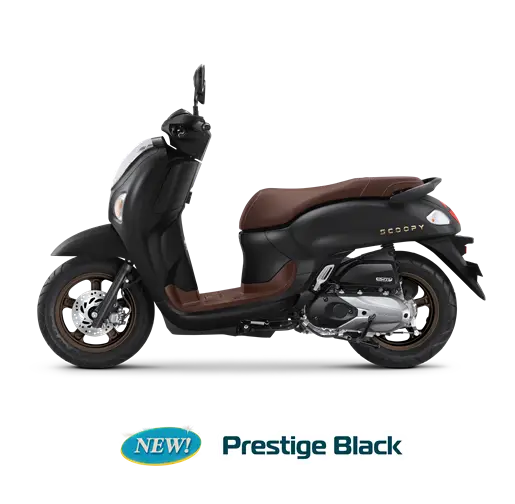

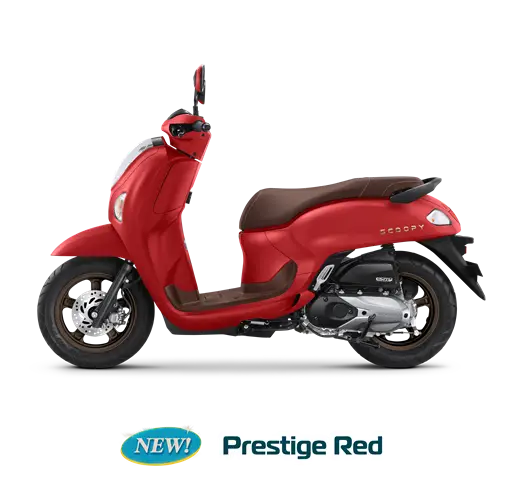

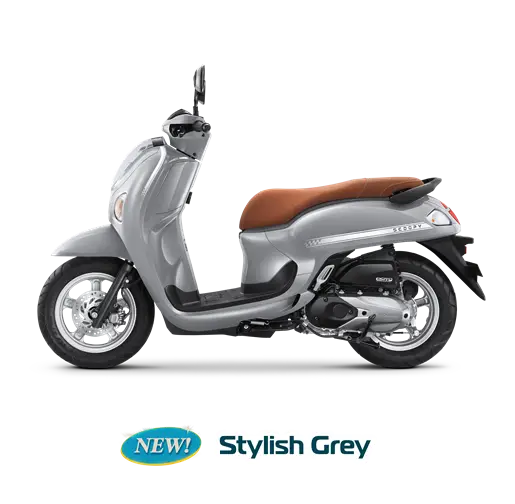

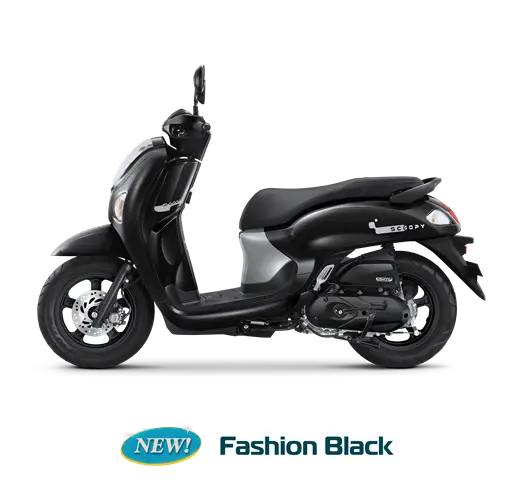

HONDA SCOOPY
Prestige - Stylish
Fashion - Energetic
New Tail light &
Winker Design
Retro design rounded
in the middle with 3
box silhouette details
symbolizing Crystal
Block.
Functional Hook
Makes it easier to carry
items. Can be folded to
look neater with a hook
that eliminates the
worry of items being
thrown/falling.
Console Box
Console Box with larger
capacity (4L) with easier
opening mechanism by
simply pressing to
open and close.
USB Type-C Charger in
Console Box
Latest cable connector
with maximum output
5V 3A
New LED Crystal Block
Headlight
The latest LED technology
with Crystal Block gives a
modern and unique
impression as the first
motorbike to carry Crystal
Block technology.
Honda Smart Key System
Advanced remote
technology, which no
longer requires a
mechanical key to operate
the handlebar lock/start the
engine. Equipped with an
anti-theft alarm security
system & answer back
system to make it easier to
find the position of the
motorbike. * Available on
Stylish and Prestige types.
Digital Panel System
The meter panel with LCD
display can provide
complete information:
digital clock, eco indicator,
fuel consumption, oil
change, tripmeter, and
battery indicator*. *Only
for Smart Key type.
Honda BeAT Street Specification
| Engine | |
|---|---|
| Engine Type | 4 – Stroke, SOHC, eSP |
| Cooling Type | Air Conditioning |
| Fuel System | Injection (PGM-FI) |
| Stroke Volume | 109.5cc |
| Bore x Stroke | 47.0 x 63.1 mm |
| Compression Ratio | 10.0 : 1 |
| Maximum Power | 6.6 kW (9.0 PS) / 7,500 rpm |
| Maximum Torque | 9.2 N.m (0.94 kgf.m) / 6,000 rpm |
| Starter | Electric Starter |
| Clucth | Automatic, Centrifugal, Dry Type |
| Type | |
|---|---|
| Frame Type | Backbone – eSAF (enhance Smart Architecture Frame) |
| Front Suspension | Type Telescopic |
| Rear Suspension | Type Swing Arm with Single Shock Absorber |
| Front Tire Size | 110/90 – 12 59J Tubeless |
| Rear Tire Size | 110/90 – 12 64J Tubeless |
| Front Brake | Hydraulic Disc with Single Piston |
| Rear Brake | Drum |
| Braking System | Combi Brake System |
| Dimension | |
|---|---|
| Length X Width X Height | 1869 x 693 x 1075 mm |
| Seat height | 746 mm |
| Wheelbase | 1,251 mm |
| Lowest ground clearance | 145 mm |
| Empty weight | 94 kg (STD) dan 93 kg (Smart Key) |
| Capacity | |
|---|---|
| Fuel Tank Capacity | 4.2 L |
| Lubricating Oil Capacity | 0.65 Liter (Periodic Replacement) |
| Electricity System | |
|---|---|
| Electricity | MF 12V-3Ah |
| Ignition System | Full Transisterized |
| Spark Plug Type | NGK MR9C-9N / DENSO U27EPR-N9 |
