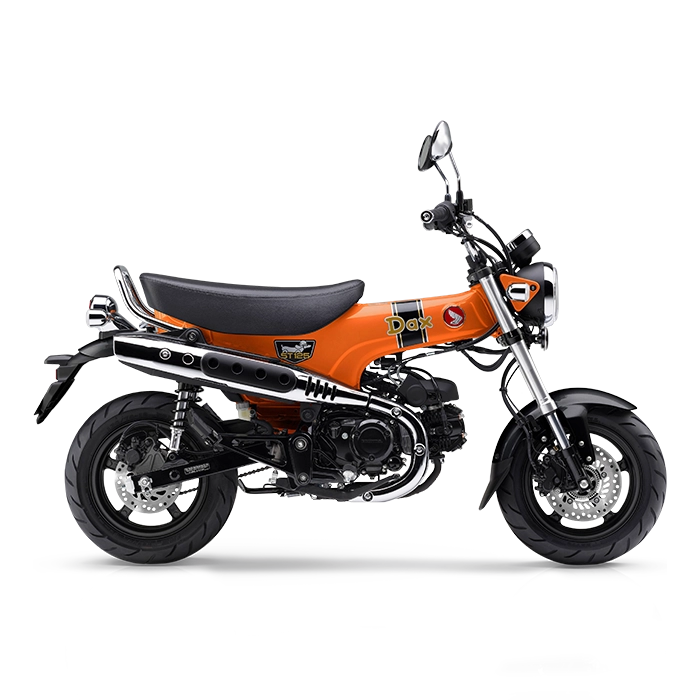

HONDA ST125 DAX
Various Color ST125 Dax
Digital Panel Meter
Digital indicator panel
with advanced display
and complete
information
LED Headlight
Headlights with a full
LED lighting system so
they are brighter and
add a modern
impression.
ABS inertial Measurement
Unit
Single channel ABS on the
braking system with Inertial
Measurement Unit (IMU) to
prevent the rear tire from
lifting during sudden
braking.
Inverted Front
Suspension
The Upside Down front
suspension adds stability
and full control, while
adding a dashing
impression.
Rear Disc Brake
Advanced braking system
that functions to improve
braking performance to
make it more comfortable
and stable.
Rear Disc Brake
The taillights and turn
signals have a full LED
lighting system so they
are brighter and add
a modern impression.
Honda ST125 DAX Specification
| Engine | |
|---|---|
| Engine Type | 4 -stroke SOHC 2-Valve |
| Stroke Volume | 124 cc |
| Fuel System | Injection (PGM-FI) |
| Bore x Stroke | 50 x 63,1 mm |
| Transmission Type | 4 Speed Manual Levels |
| Compression Ratio | 10 :1 |
| Maximum Power | 6,6 kW / 7.000 rpm |
| Maximum Torque | 10,4 Nm / 5.000 rpm |
| Starter | Elektrik |
| Clucth | Wet, Multiple Clutch |
| Cooling System | Air Cooled |
| Frame & Footer | |
|---|---|
| Frame | Back Bone Steel |
| Front Suspension | Showa, 31mm Inverted Telescopic Fork |
| Rear Suspension | Showa, Twin Shock |
| Front Tire | 120/70-12 51 L |
| Rear Tire | 130/70-12 56 L |
| Front Brake | Hydraulic, Single 220 mm disc with ABS |
| Rear Brake | Hydraulic, Single 190mm disc |
| Dimension | |
|---|---|
| Length X Width X Height | 1.761 x 762 x 1.019 mm |
| Seat height | 778 mm |
| Wheelbase | 1.198 mm |
| Lowest ground clearance | 178 mm |
| Curb weight | 107 kg |
| Fuel Capacity | 3,8 liter |
| Oil Lubricant Capacity | 0.8 liter |
| Electricity System | |
|---|---|
| Electricity | 12V-3Ah |
| Spark Plug Type | NGK CPR7EA-9S |
| Ignition System | Full Transisterized |
| Headlight | LED |
