DESIGNED TO DEFY
REVIEW

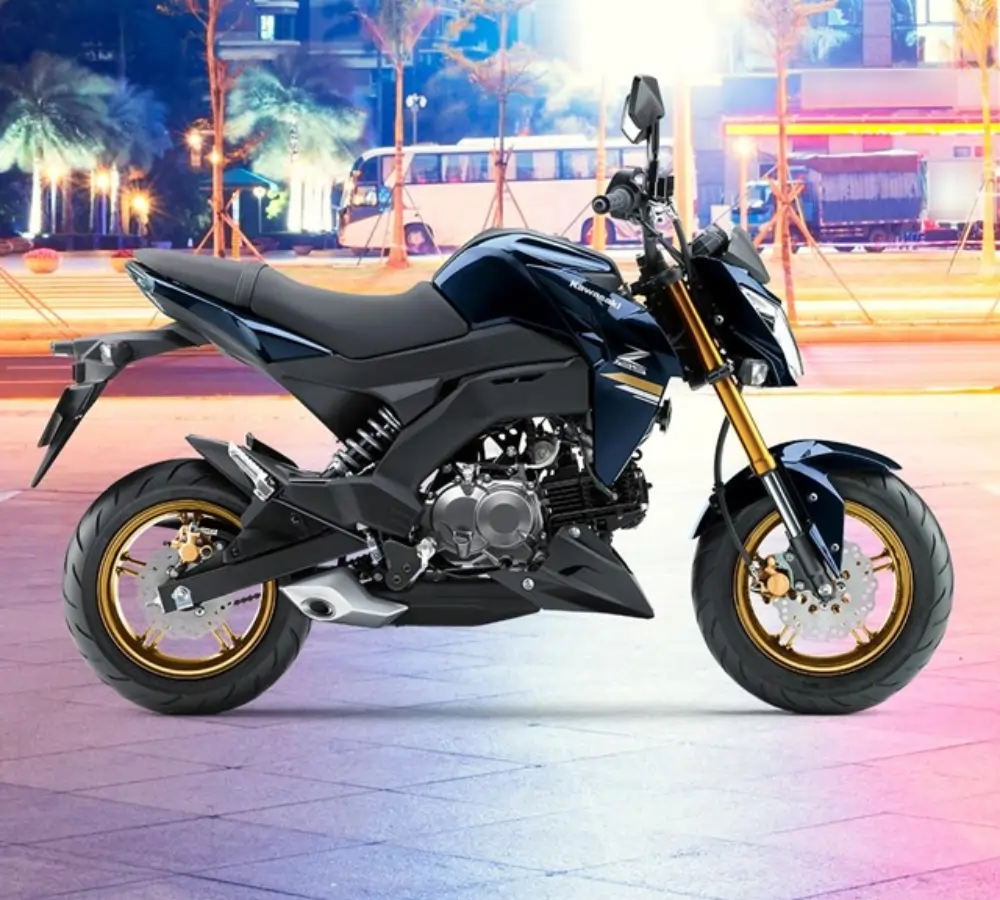

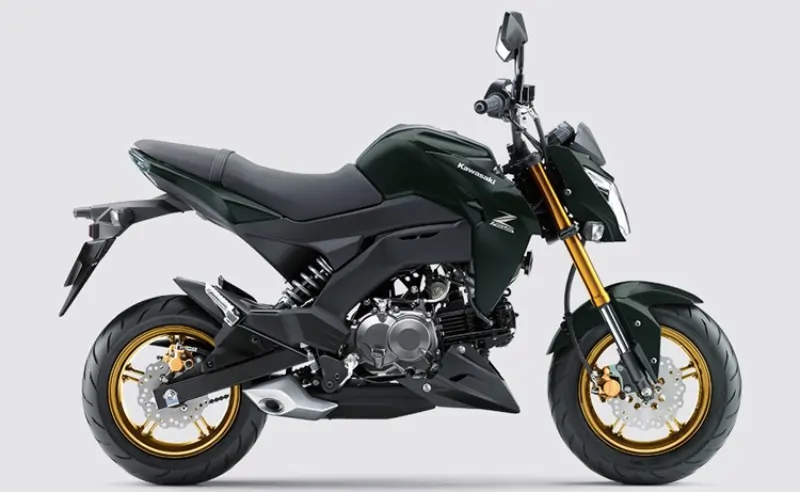

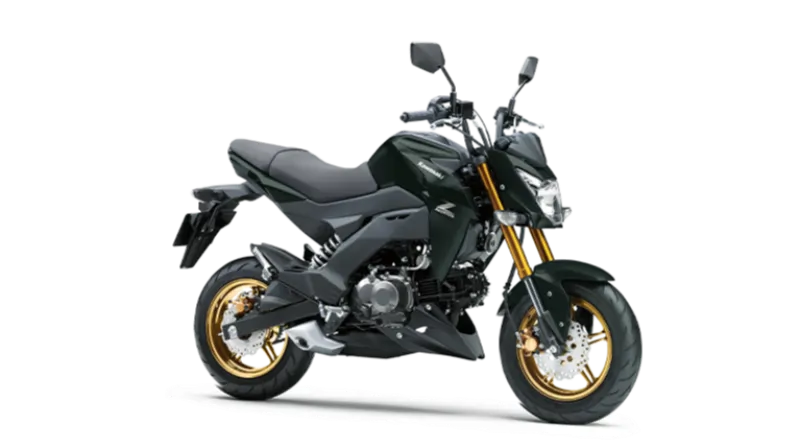

Small but fun, the Kawasaki Z125 PRO is a nimble streetfighter that makes a statement wherever it goes. With a 125cc engine, upright riding position and responsive street tires, it’s a fun way to rebel.
BENEFIT :
125 cc fuel-injected engine
Four-speed manual transmission
Offset laydown single-shock
Digital LCD display with analog tachometer and gear position indicator

MODEL

2025
Z125 PRO
ADD FEATURE
- Desain lampu agresif

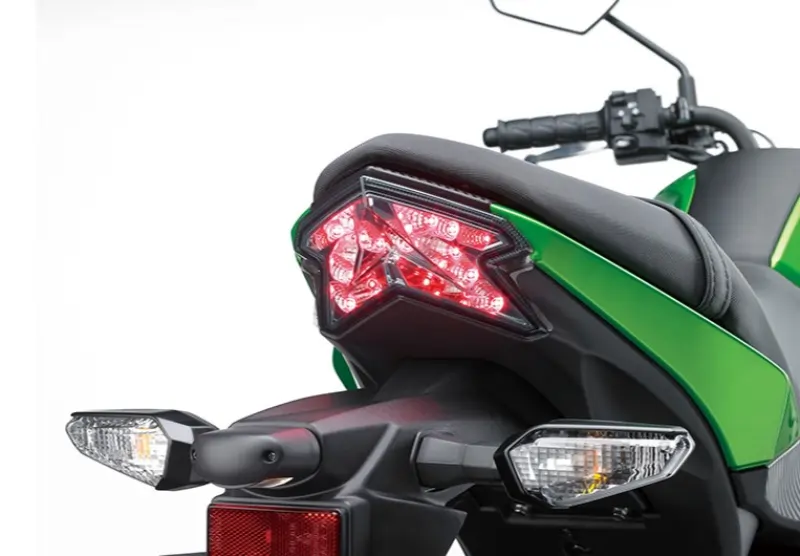

- Desain lampu belakang LED yang tajam
- Distinctive shrouds dan sharp lower cowl
- Chassis yang ringan
- Cast wheels 12 inci
- Smart Regulator
Power Max | 6,9 kW {9,4 PS} / 7.500 rpm |
Torque Max | 9,5 Nm {0,97 kgfm} / 6.000 rpm |
Engine Type | Air-cooled, 4-stroke Single |
Volume Cylinder | 125 cc |
Bore X Stroke | 56,0 x 50,6 mm |
Compression Ratio | 9,8:1 |
Valve System | SOHC, 2 valves |
Fuel System | Fuel injection: ø24 mm x 1 |
Ignition System | Digital |
Starter | Electric |
Transmission | 4-speed, return |
Primary Reduction Ratio | 3,409 (75/22) |
Final Reduction Ratio | 2,143 (30/14) |
Clutch | Wet multi-disc, manual |
System Final Drive Type | Chain |
Frame Type | Backbone, high-tensile steel |
Front Suspension | ø30 mm inverted fork |
Rear Suspension | Offset laydown single-shock with adjustable preload |
Front Wheel Travel | 100 mm |
Rear Wheel Travel | 104 mm |
Turning Angle / Trail | 26,0° / 69 mm |
Front Tire | 100/90-12 49J |
Rear Tire | 120/70-12 51L |
Front Brake | Single ø200 mm petal disc |
Front Caliper | Single-piston |
Rear Brake | Single ø184 mm petal disc |
Rear Caliper | Single-piston |
Dimension | 1.700 x 750 x 1.005 mm |
Wheelbase | 1.755 mm |
Ground Clearance | 155 mm |
Seat Height | 780 mm |
Curb Weight | 101 kg |
Fuel Capacity | 7,4 litres |

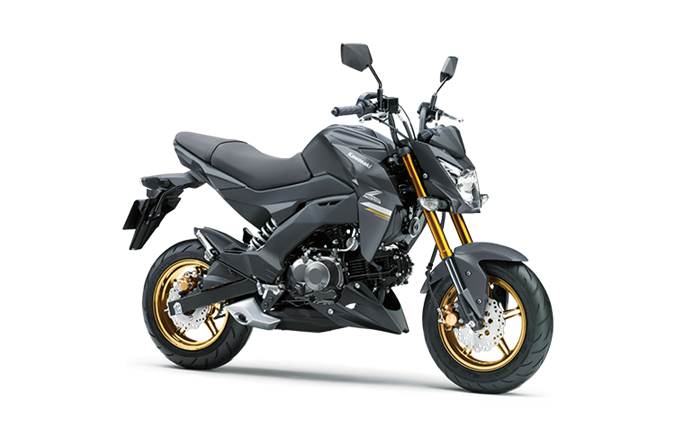

2024
Z125 PRO
ADD FEATURE
- Aggressive headlight design
- Sharp LED taillight design
- Distinctive shrouds and sharp lower cowl
- Lightweight chassis
- 12-inch cast wheels
- Smart Regulator
Power Max | 6,9 kW {9,4 PS} / 7.500 rpm |
Torque Max | 9,5 Nm {0,97 kgfm} / 6.000 rpm |
Engine Type | Air-cooled, 4-stroke Single |
Volume Cylinder | 125 cc |
Bore X Stroke | 56,0 x 50,6 mm |
Compression Ratio | 9,8:1 |
Valve System | SOHC, 2 valves |
Fuel System | Fuel injection: ø24 mm x 1 |
Ignition System | Digital |
Starter | Electric |
Transmission | 4-speed, return |
Primary Reduction Ratio | 3,409 (75/22) |
Final Reduction Ratio | 2,143 (30/14) |
Clutch | Wet multi-disc, manual |
System Final Drive Type | Chain |
Frame Type | Backbone, high-tensile steel |
Front Suspension | ø30 mm inverted fork |
Rear Suspension | Offset laydown single-shock with adjustable preload |
Front Wheel Travel | 100 mm |
Rear Wheel Travel | 104 mm |
Turning Angle / Trail | 26,0° / 69 mm |
Front Tire | 100/90-12 49J |
Rear Tire | 120/70-12 51L |
Front Brake | Single ø200 mm petal disc |
Front Caliper | Single-piston |
Rear Brake | Single ø184 mm petal disc |
Rear Caliper | Single-piston |
Dimension | 1.700 x 750 x 1.005 mm |
Wheelbase | 1.755 mm |
Ground Clearance | 155 mm |
Seat Height | 780 mm |
Curb Weight | 101 kg |
Fuel Capacity | 7,4 litres |

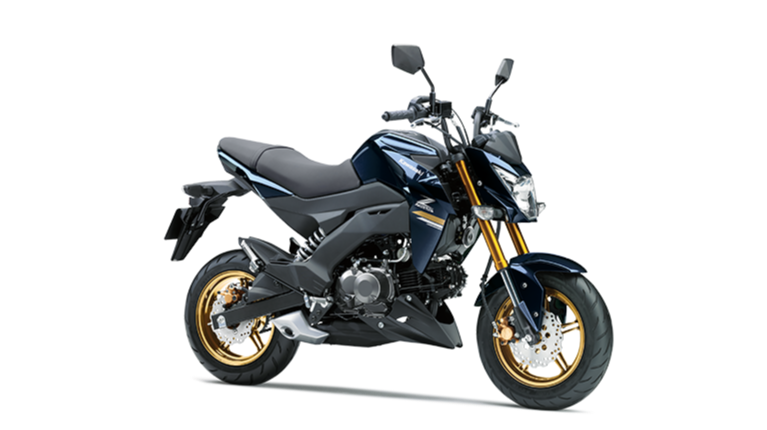

2023
Z125 PRO
ADD FEATURE
- Aggressive headlight design
- Sharp LED taillight design
- Distinctive shrouds and sharp lower cowl
- Lightweight chassis
- 12-inch cast wheels
- Smart Regulator
Power Max | 6,9 kW {9,4 PS} / 7.500 rpm |
Torque Max | 9,5 Nm {0,97 kgfm} / 6.000 rpm |
Engine Type | Air-cooled, 4-stroke Single |
Volume Cylinder | 125 cc |
Bore X Stroke | 56,0 x 50,6 mm |
Compression Ratio | 9,8:1 |
Valve System | SOHC, 2 valves |
Fuel System | Fuel injection: ø24 mm x 1 |
Ignition System | Digital |
Starter | Electric |
Transmission | 4-speed, return |
Primary Reduction Ratio | 3,409 (75/22) |
Final Reduction Ratio | 2,143 (30/14) |
Clutch | Wet multi-disc, manual |
System Final Drive Type | Chain |
Frame Type | Backbone, high-tensile steel |
Front Suspension | ø30 mm inverted fork |
Rear Suspension | Offset laydown single-shock with adjustable preload |
Front Wheel Travel | 100 mm |
Rear Wheel Travel | 104 mm |
Turning Angle / Trail | 26,0° / 69 mm |
Front Tire | 100/90-12 49J |
Rear Tire | 120/70-12 51L |
Front Brake | Single ø200 mm petal disc |
Front Caliper | Single-piston |
Rear Brake | Single ø184 mm petal disc |
Rear Caliper | Single-piston |
Dimension | 1.700 x 750 x 1.005 mm |
Wheelbase | 1.1275 mm |
Ground Clearance | 155 mm |
Seat Height | 780 mm |
Curb Weight | 101 kg |
Fuel Capacity | 7,4 litres |

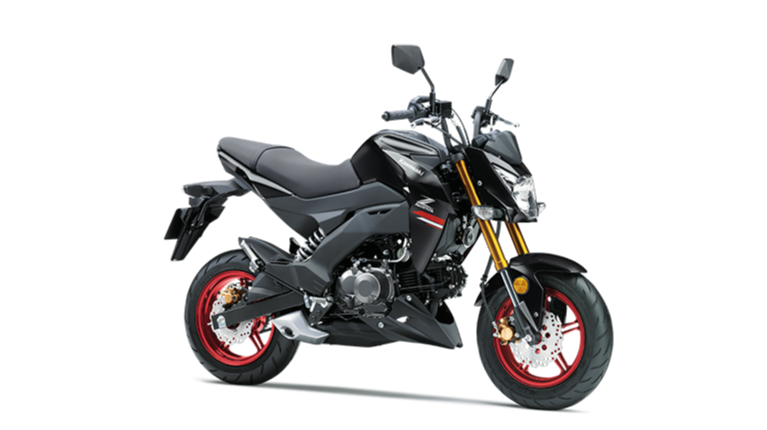

2022
Z125 PRO
ADD FEATURE
- Aggressive headlight design
- Sharp LED taillight design
- Distinctive shrouds and sharp lower cowl
- Lightweight chassis
- 12-inch cast wheels
- Smart Regulator
Power Max | 6,9 kW {9,4 PS} / 7.500 rpm |
Torque Max | 9,5 Nm {0,97 kgfm} / 6.000 rpm |
Engine Type | Air-cooled, 4-stroke Single |
Volume Cylinder | 125 cc |
Bore X Stroke | 56,0 x 50,6 mm |
Compression Ratio | 9,8:1 |
Valve System | SOHC, 2 valves |
Fuel System | Fuel injection: ø24 mm x 1 |
Ignition System | Digital |
Starter | Electric |
Transmission | 4-speed, return |
Primary Reduction Ratio | 3,409 (75/22) |
Final Reduction Ratio | 2,143 (30/14) |
Clutch | Wet multi-disc, manual |
System Final Drive Type | Chain |
Frame Type | Backbone, high-tensile steel |
Front Suspension | ø30 mm inverted fork |
Rear Suspension | Offset laydown single-shock with adjustable preload |
Front Wheel Travel | 100 mm |
Rear Wheel Travel | 104 mm |
Turning Angle / Trail | 26,0° / 69 mm |
Front Tire | 100/90-12 49J |
Rear Tire | 120/70-12 51L |
Front Brake | Single ø200 mm petal disc |
Front Caliper | Single-piston |
Rear Brake | Single ø184 mm petal disc |
Rear Caliper | Single-piston |
Dimension | 1.700 x 750 x 1.005 mm |
Wheelbase | 1.1275 mm |
Ground Clearance | 155 mm |
Seat Height | 780 mm |
Curb Weight | 101 kg |
Fuel Capacity | 7,4 litres |
TECHNOLOGY
SMART REGULATOR

The electric power used for the lights and fuel pump is produced by the motor generator. The power is captured by the regulator which then maintains the voltage at a constant level. Kawasaki’s Smart Regulator, developed for small-capacity models with a built-in microprocessor, controls the charging and headlamp functions.
This control allows charging to be carried out even when the motor is running at idling speed, which is when the voltage generated is at its lowest (provided that it is in standard conditions and no accessories are used), which is beyond the capabilities of most regulators. In addition, once the battery is fully charged, the Smart Regulator will turn off the charging function when the throttle is opened quickly. This will immediately reduce the electrical resistance of the generator, so that the energy used to drive the generator can be saved, which is usually wasted on small-capacity engines. By minimizing power losses, the Smart Regulator contributes to increased fuel efficiency.

Z STYLING
Aggresive Styling
The Z125 PRO motorbike with aggressive streetfighter styling is small but fun.
Z STYLING

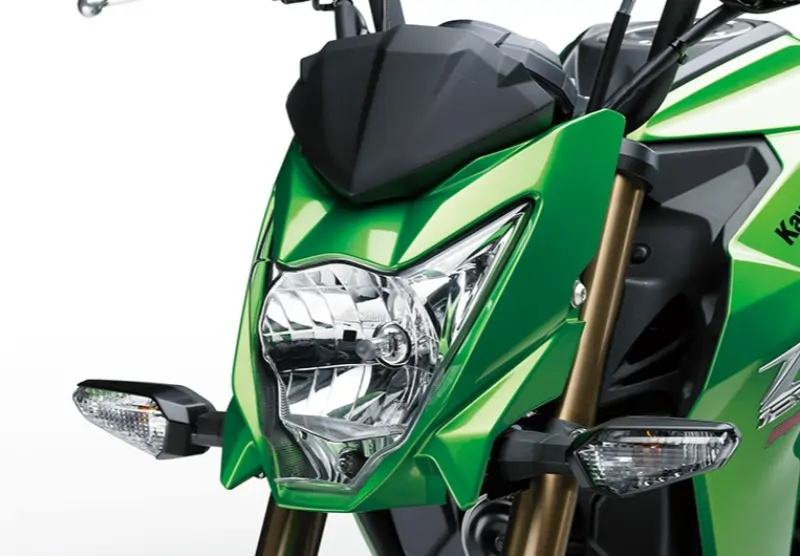

Light up the road with the Z125 PRO’s aggressive headlight design.

Z STYLING

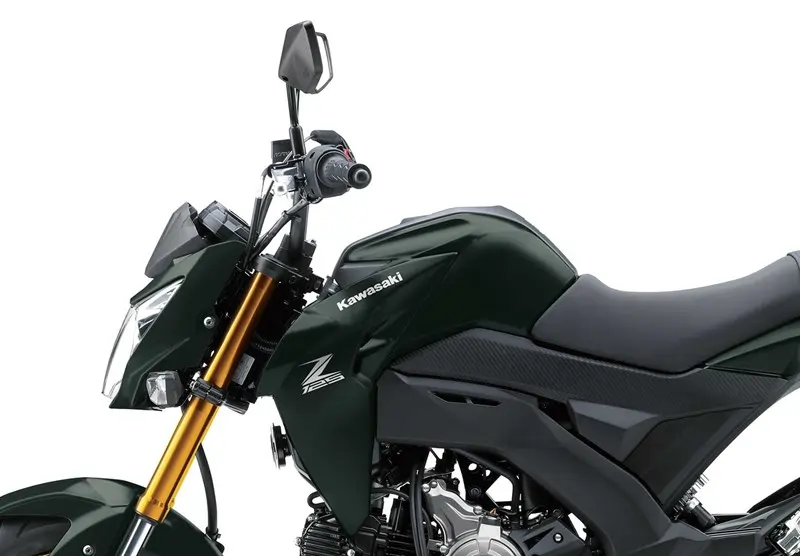

The Z125 PRO’s signature shroud and sharp lower cowl contribute to its aggressive streetfighter look.

Z STYLING

Z STYLING
Modern and Sleek

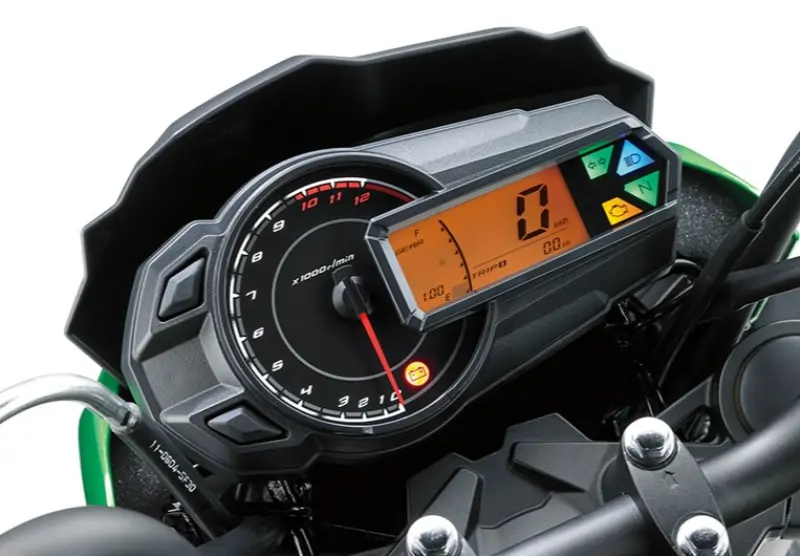

Digital LCD display and analog tachometer with integrated fuel gauge and gear position indicator.

POWER & PERFORMANCE
Small Size. Big Fun.
Power and performance for new and experienced riders.


POWER & PERFORMANCE

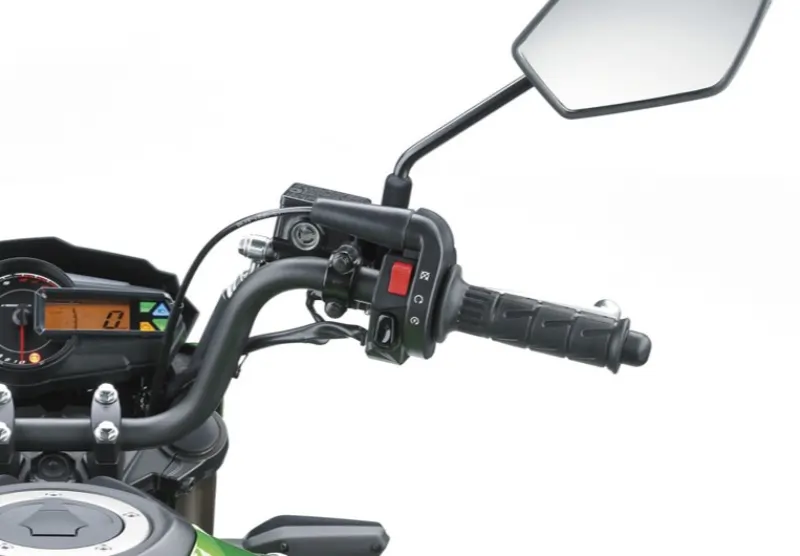

The fun begins as soon as the Z125 PRO is turned on by pressing the electric start feature button.

ADVANCED ELECTRONIC

POWER & PERFORMANCE
Small but Mighty

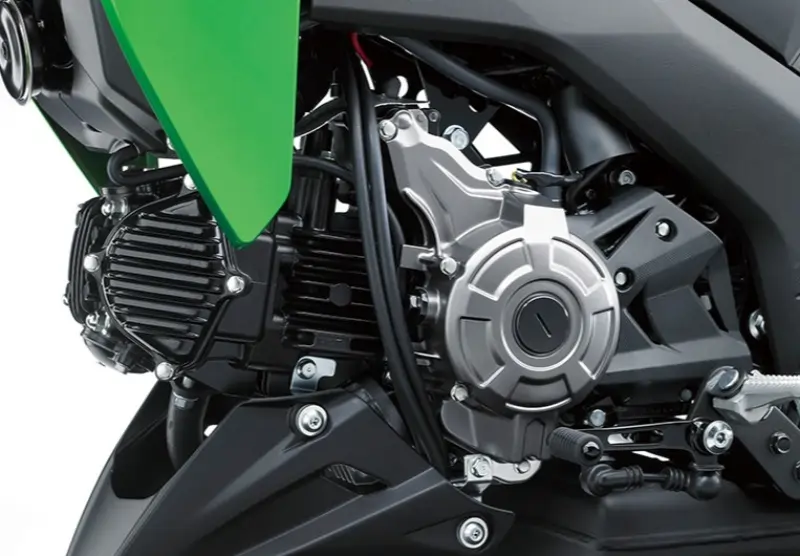

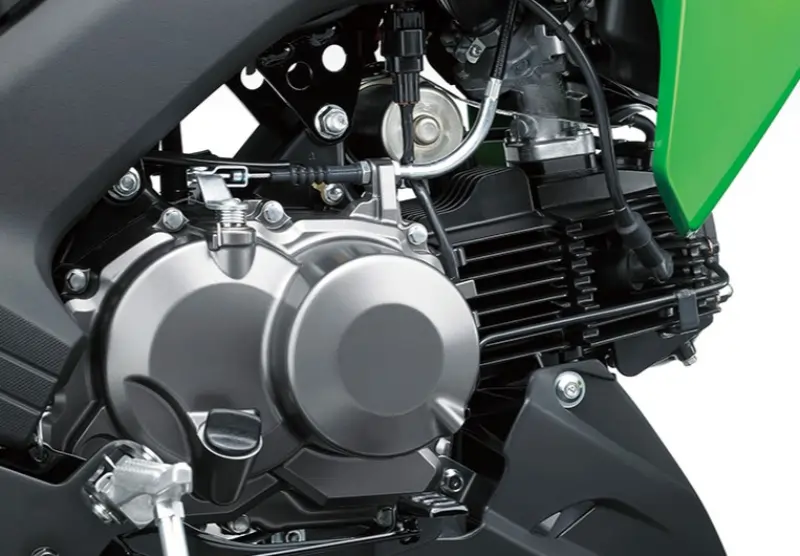

The 125cc fuel-injected single-cylinder engine delivers strong power for miles.

POWER & PERFORMANCE

HANDLING
The Nimblest Streetfighter
Compact and lightweight for sport riding performance and easy handling.
HANDLING
Compact & Adjustable

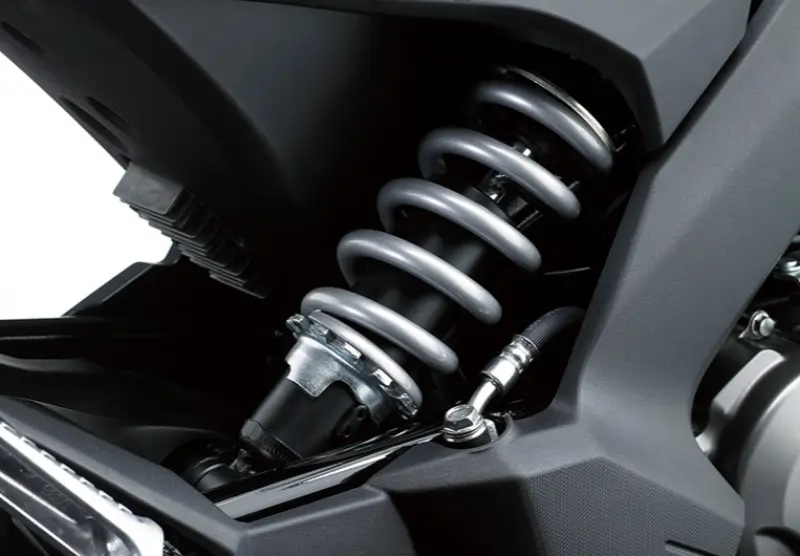

The single-shock laydown offset with 4-way preload on this bike adjusts for solo or tandem riding. This also contributes to the compact chassis design.

HANDLING

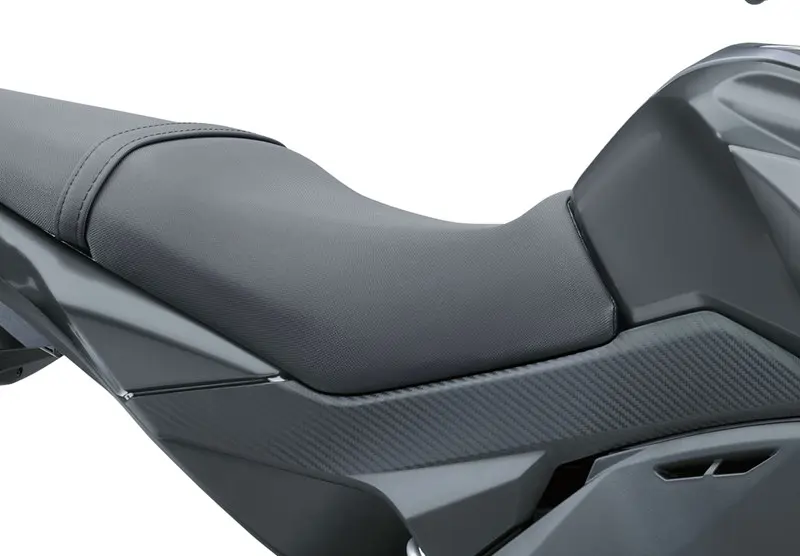

Low seat height and comfortable ergonomics provide easy handling and increase rider comfort.

HANDLING

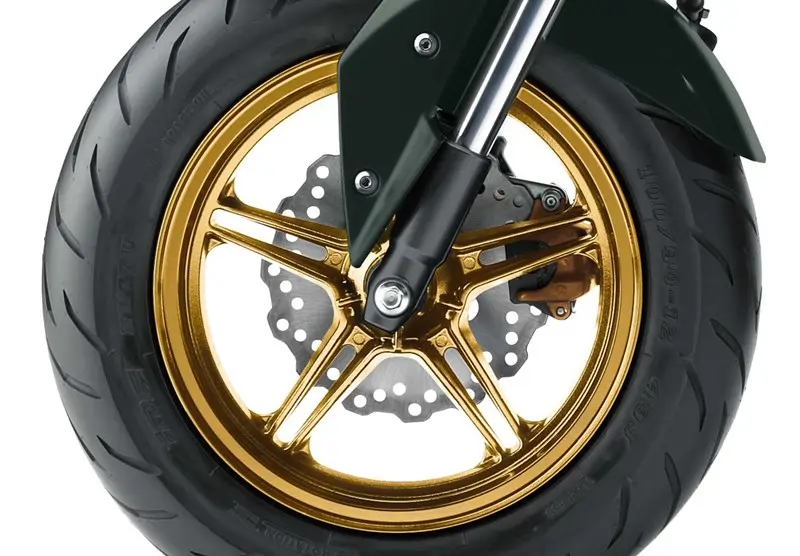

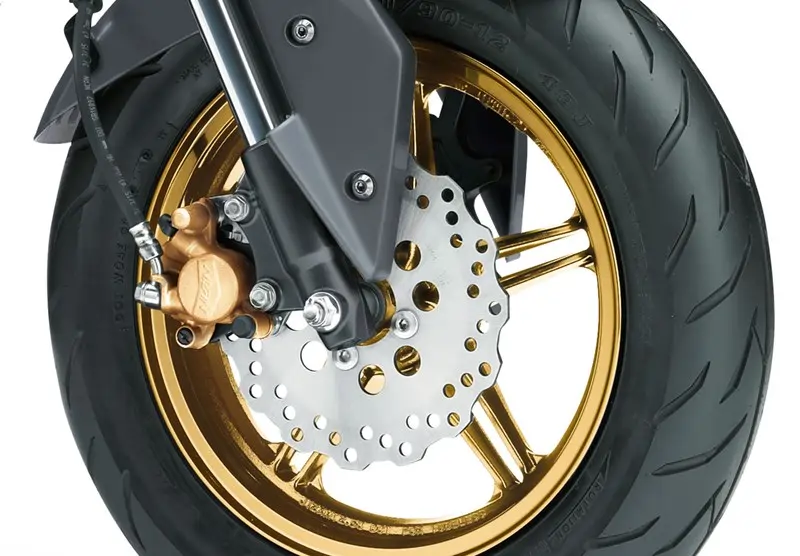

ø200 mm front and ø184 mm rear petal discs contribute to strong progressive stopping power.

HANDLING
