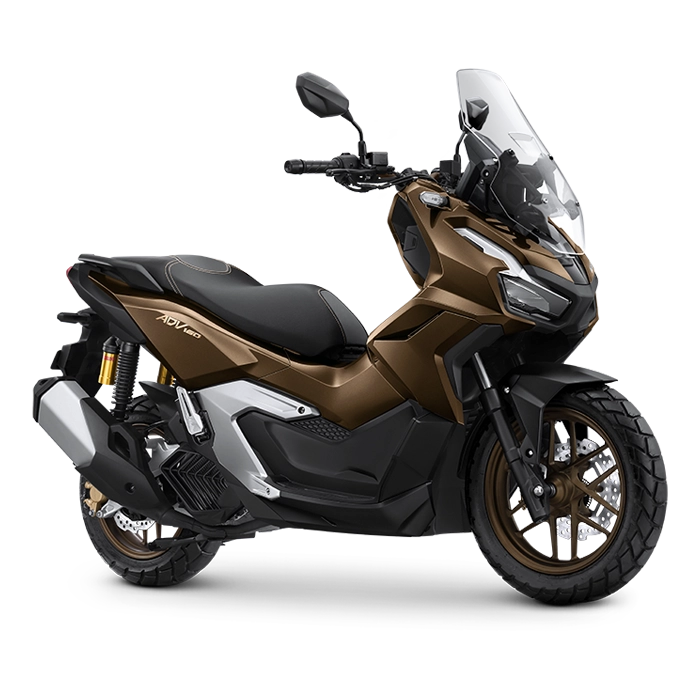

HONDA ADV 160
HONDA ADV 160 FEATURE

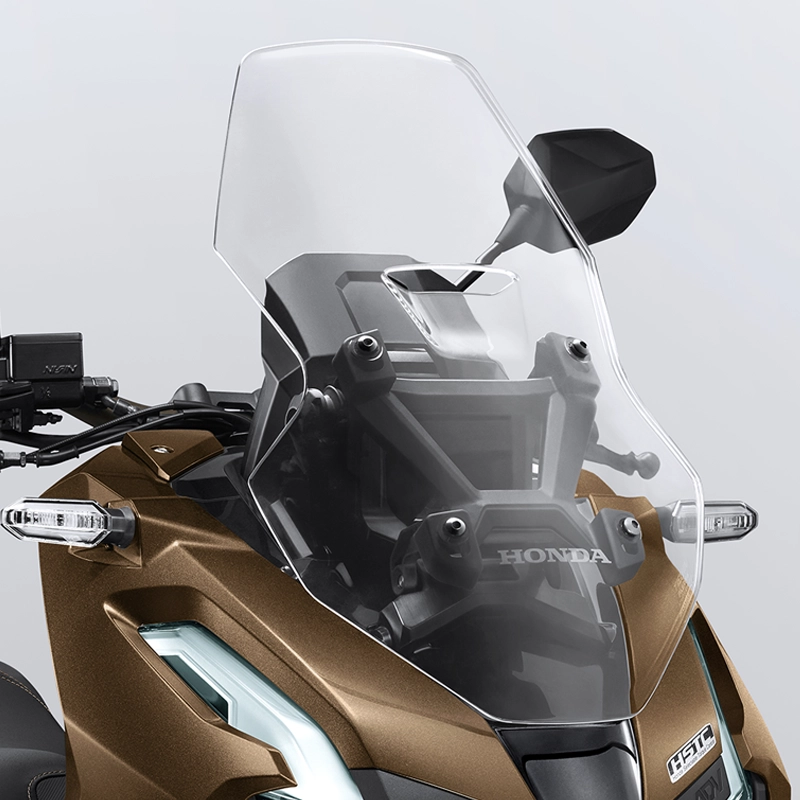

Adjustable Windscreen
The windscreen consists of 2 height levels that can be easily adjusted without having to open the bolts.

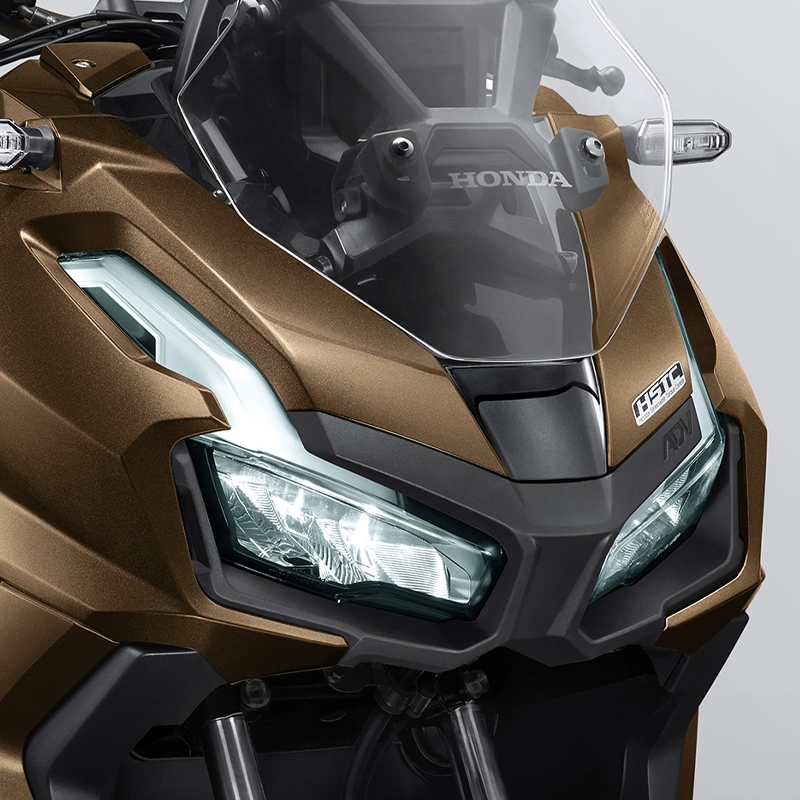

LED Headlight
All LED lighting system on headlights, taillights and turn signals for better and long-lasting lighting capabilities.

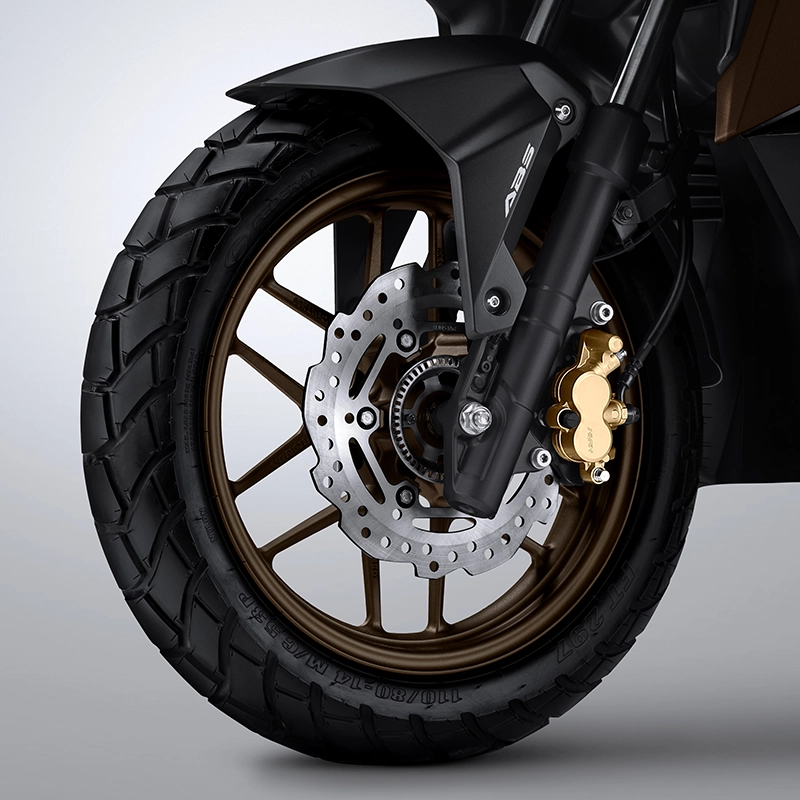

Wavy Disc Brake
Braking system with wavy disc brakes on the front and rear to provide better braking ability and give a dashing impression to the motorbike.

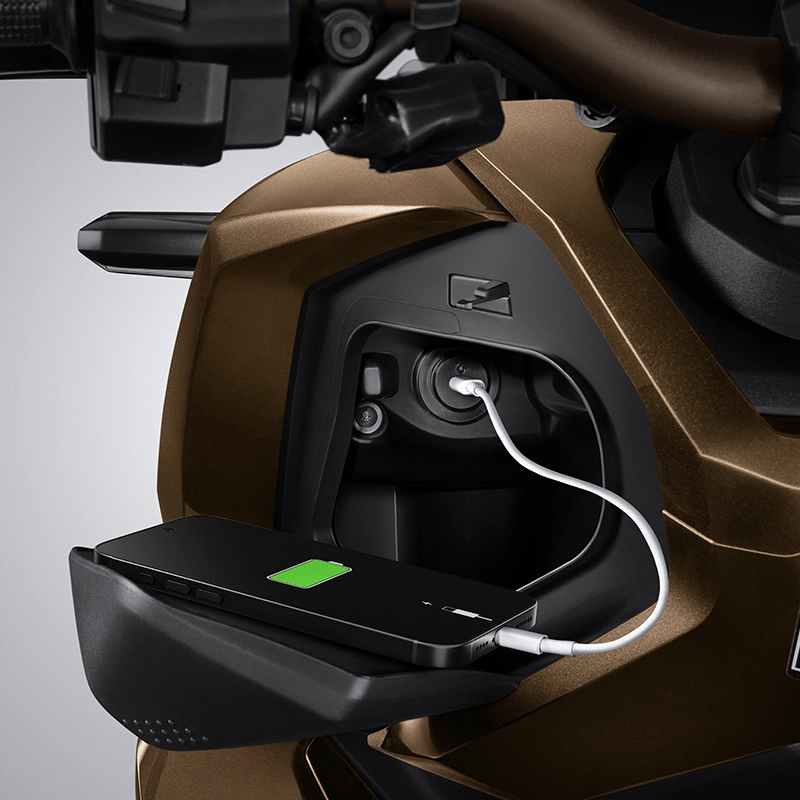

New USB Type-C Charger
Honda ADV160 is equipped with USB Type-C Charger *maximum power 5V 3A.

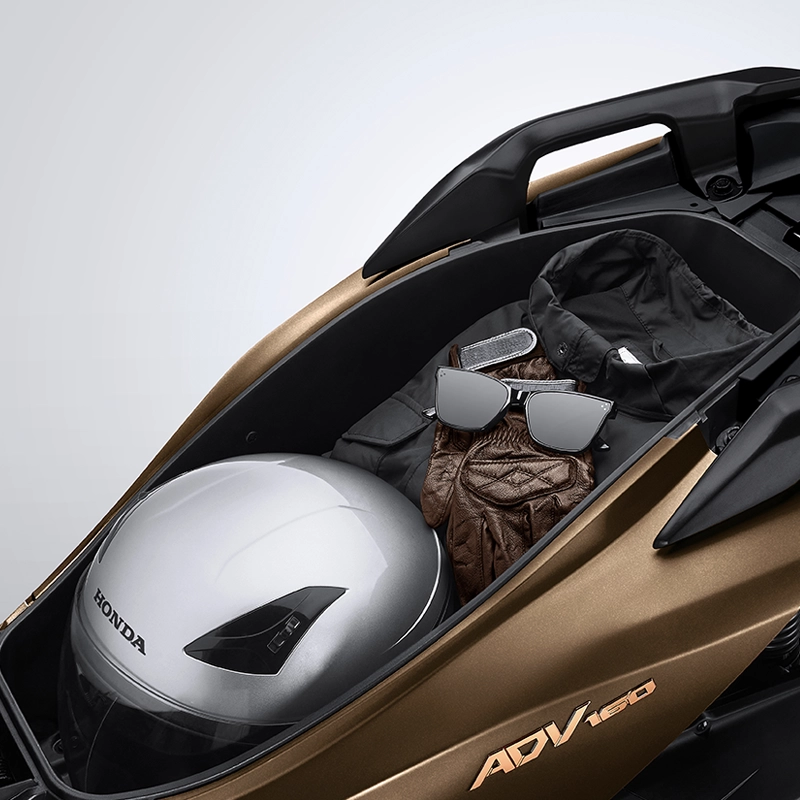

Extra Large Luggage Box
Large-capacity luggage compartment. Large-capacity luggage compartment (30 liters). Can be used to store helmets and other items for daily activities and hobbies.

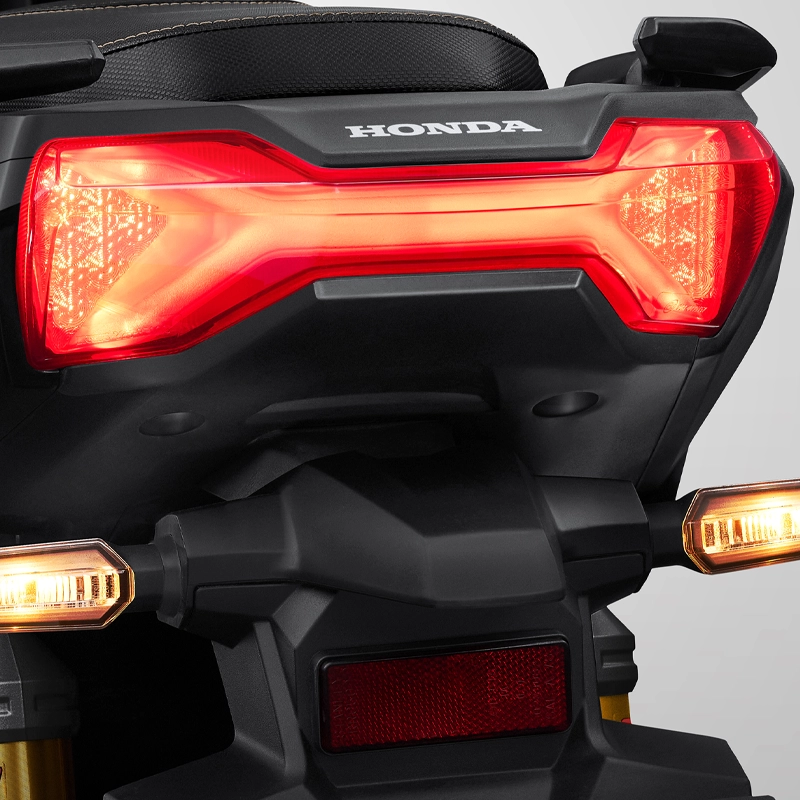

LED Taillight & Emergency Stop Signal.
LED Taillight with “X” pattern to give a strong and tough impression. Equipped with Emergency Stop Signal (ESS) for emergency situations during sudden braking at high speeds”. *ESS is only available on the ABS type.

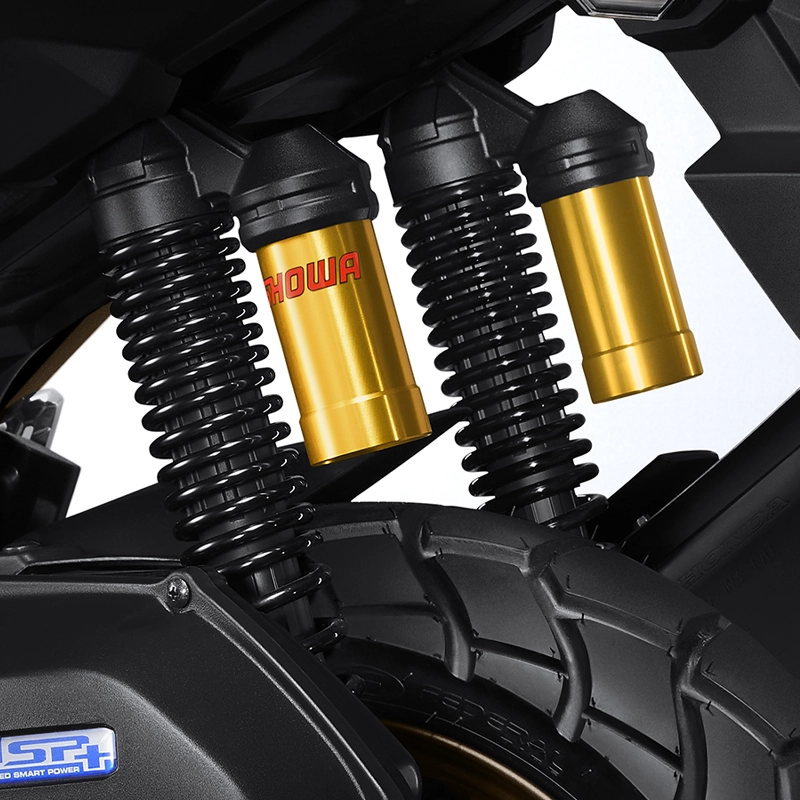

Subtank Rear Suspension
The rear suspension is equipped with a tube to get better and more comfortable suspension rebound performance.
type.

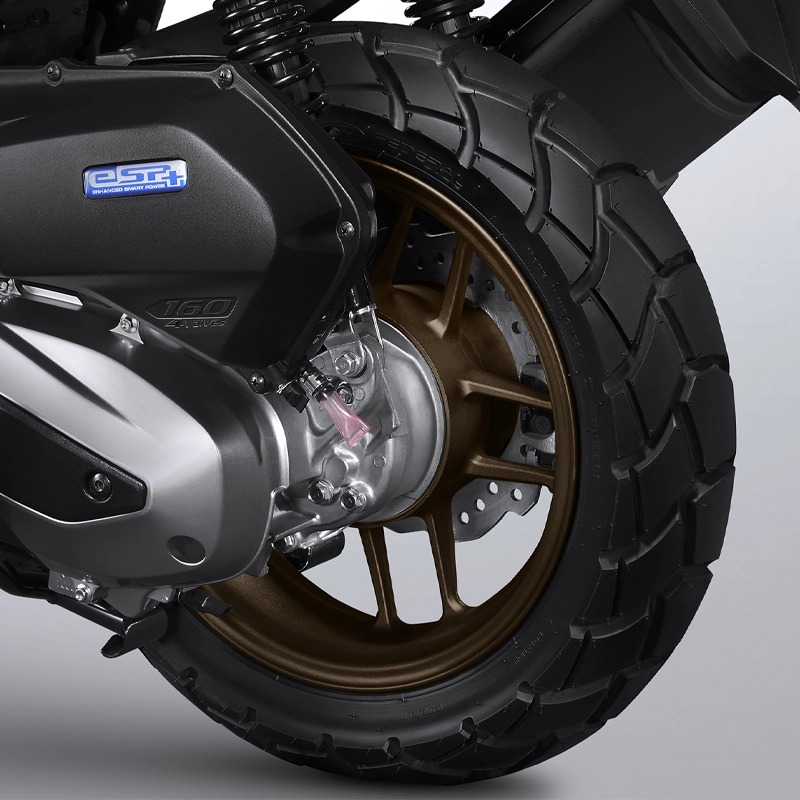

Semi Dual Purpose Tire
Wide tires with semi dual purpose pattern to pass through various road conditions

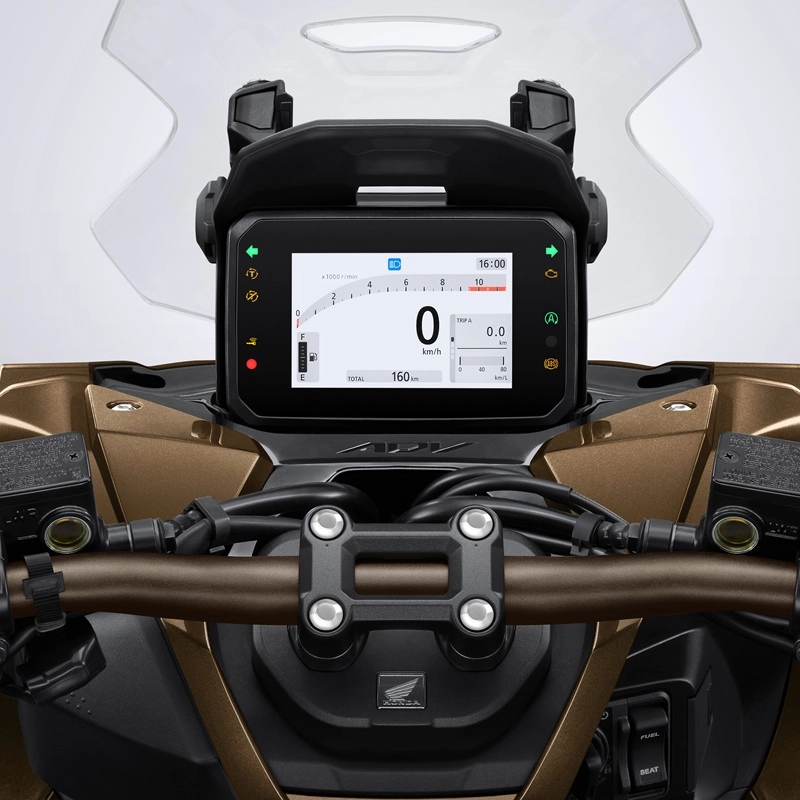

New 5” TFT Panel Meter
Full color indicator panel equipped with 5 inch TFT technology with customizable display and background color and provides complete information for the driver including Honda RoadSync features, Tacho Meter, Trip Meter and Fuel Consumption Information. *Only on the Honda RoadSync type.

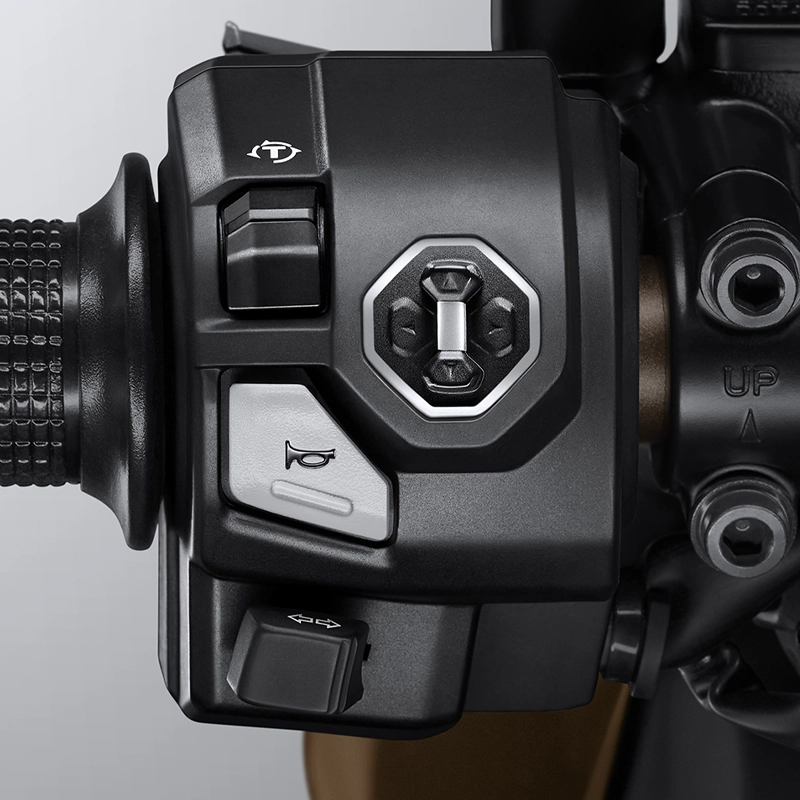

New Multi-Function Switch
Advanced technology to operate the TFT Panel Meter easily and practically which helps users to drive. *Only on the Honda RoadSync type.

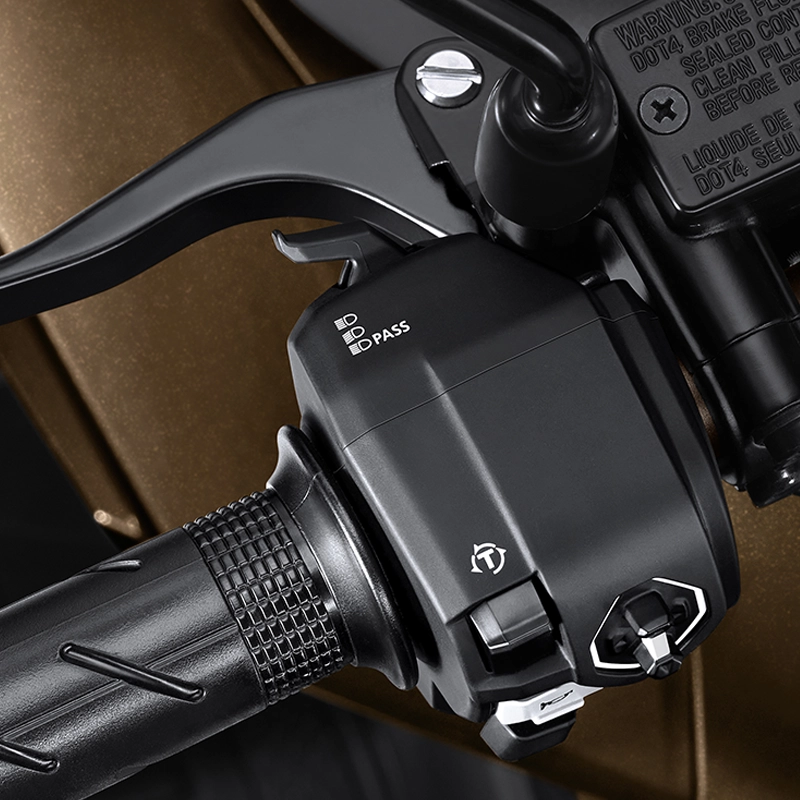

New Pass Beam Switch
A handy button feature to provide high beam signals to other drivers.*Only on the Honda RoadSync type.
- Hover Over a Point to See Detail
Honda ADV 160 Specification
| Engine Type | 4-Stroke, 4-Valve, eSP+ |
| Cooling Type | Liquid Cooling |
| Fuel Supply System | PGM-FI (Programmed Fuel Injection) |
| Stroke Volume | 156.9 cc |
| Diameter x Stroke | 60 x 55.5 mm |
| Compression Comparison | 12 : 1 |
| Maximum Power | 11.8 kW (16 PS) / 8,500 rpm |
| Maximum Torque | 14.7 Nm (1.5 kgf.m) / 6,500 rpm |
| Transmission Type | Automatic, V-Matic |
| Starter Type | Electric |
| Clutch Type | Automatic, Centrifugal, Dry Type |
| Lubricating Oil Type | Wet |
| Lubricating Oil Capacity | 0.75 liters (Periodic Replacement) |
| Frame Type | Double Cradle |
| Front Tire Size | 110/80 – 14M/C Tubeless |
| Rear Tire Size | 130/70 – 13M/C Tubeless |
| Front Brake Type | Wavy Disc Brake |
| Rear Brake Type | Wavy Disc Brake |
| Braking System | Triple Pots Hydraulic Combi Brake System (CBS) / Anti-Lock Braking System (ABS & Honda RoadSync) |
| Front Suspension Type | Telescopic |
| Rear Suspension Type | Dual Rear Suspension with Tubes |
| Length x width x height | 1,950 x 763 x 1,196 mm |
| Wheelbase | 1,324 mm |
| Lowest Distance to Ground | 165 mm |
| Seat Height | 780 mm |
| Empty Weight (Curb Weight) | 133 kg (CBS & ABS) / 134 kg (Honda RoadSync) |
| Fuel Tank Capacity | 8.1 liters |
| Ignition System | Fully Transistorized |
| Battery Type | 12v-5Ah, MF type |
| Spark Plug Type | NGK LMAR8L-9 |
| Power Charger | 5V 3A |
