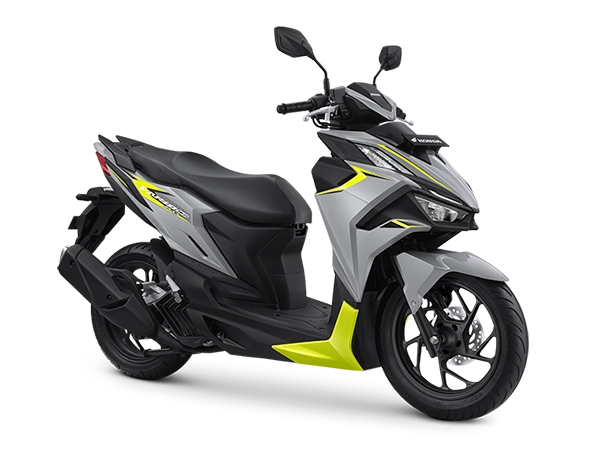

Honda Vario Evo 160
Honda Vario Evo 160 Feature

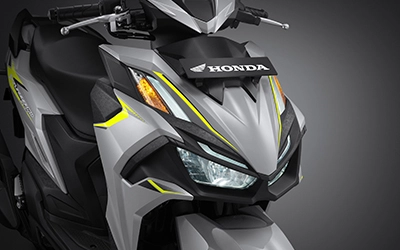

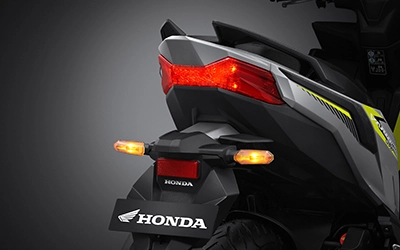

All-LED Lighting System
LED lights are used at all
lighting points, including
the headlights, taillights,
and turn signals.

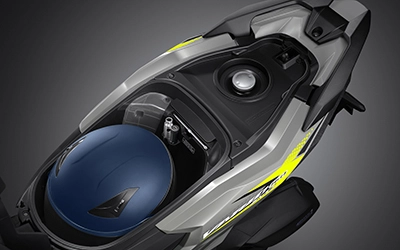

Spacious Storage
The versatile 18-liter
storage compartment
can hold a helmet and
other items.

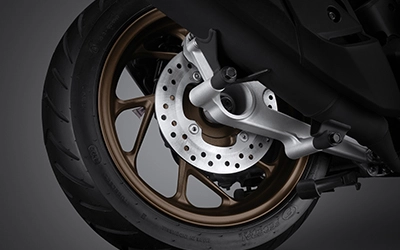

Rear Disc Brake
Rear disc brake for
smoother and more
stable braking. *Available
only on ABS models
All LED Lighting System
Aplikasi lampu LED pada
semua titik pencahayaan,
meliputi lampu depan,
lampu belakang serta
lampu sein.

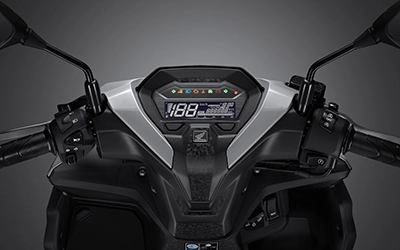

Full Digital Instrument Panel
A full-digital instrument
panel with a
sophisticated display and
comprehensive
information, including
fuel consumption, digital
clock, speedometer, trip
meter, oil change
indicator, smart key,
battery and voltage
indicators, and an
additional ABS indicator
(for ABS-equipped
models).

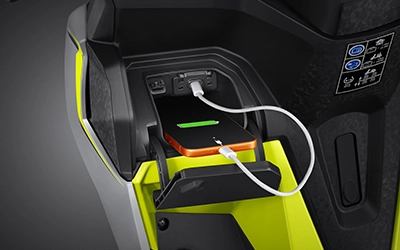

New USB Type-C Charger
The Honda Vario Evo
160 is equipped with a
USB Type-C charger
*with a maximum output
of 5V 3A.

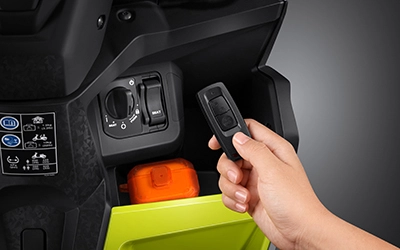

Honda Smart Key System
Advanced technology
that uses a remote
control, eliminating the
need for an ignition key
to start the engine and
lock the handlebars.
Integrated with an anti
theft alarm and an
Answer Back System.

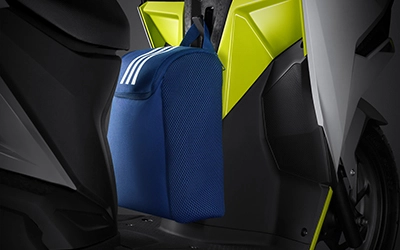

Pop-up Center Hook
A foldable center hook
that makes it easy for
users to carry their
belongings, yet remains
stylish when not in use
Honda Vario Evo 160 Specification
| Engine Type | 4-Stroke, 4-Valve, eSP+ |
| Stroke Volume | 156,9 cc |
| Cooling Type | Liquid Cooling |
| Fuel Supply System | PGM-FI (Programmed Fuel Injection) |
| Diameter x Step | 60 x 55,5 mm |
| Compression Comparison | 12,0 : 1 |
| Maximum Power | 11,3 kW (15,4 PS) / 8.500 rpm |
| Maximum Torque | 14,0 Nm (1,4 kgf,m) / 6.500 rpm |
| Transmission Type | Otomatis, V-Matic |
| Starter Type | Electricity |
| Clutch Type | Automatic, Centrifugal, Dry Type |
| Lubricating Oil Type | Wet |
| Lubricating Oil Capacity | 0.8 liters (Periodic Replacement) |
| Frame Type | Underbone – eSAF |
| Front Tire Size | 100/80 – 14M/C Tubeless |
| Rear Tire Size | 120/70 – 14M/C Tubeless |
| Front Brake | Hydraulic Disc, Single Piston |
| Rear Brake | CBS: Drum |
| Braking System | Anti-Lock Braking System (ABS) & Combi Brake System (CBS) |
| Front Suspension Type | Telescopic |
| Rear Suspension Type | Swing Arm with Single Suspension |
| Length x width x height | CBS: 1.929 x 686 x 1.091 mm |
| ABS: 1.929 x 696 x 1.091 mm | |
| Wheelbase | 1.277 mm |
| Lowest Distance to Ground | 138 mm |
| Seat Height | 778 mm |
| Empty Weight (Curb Weight) | CBS: 116 kg | ABS: 118 kg |
| Luggage Capacity | 18 liter |
| Fuel Tank Capacity | 5,5 liter |
| Ignition System | Full Transisterized |
| Battery Type | MF 12V-5 Ah |
| Spark Plug Type | NGK LMAR8L-9 |
