YAMAHA ALL NEW XSR 155

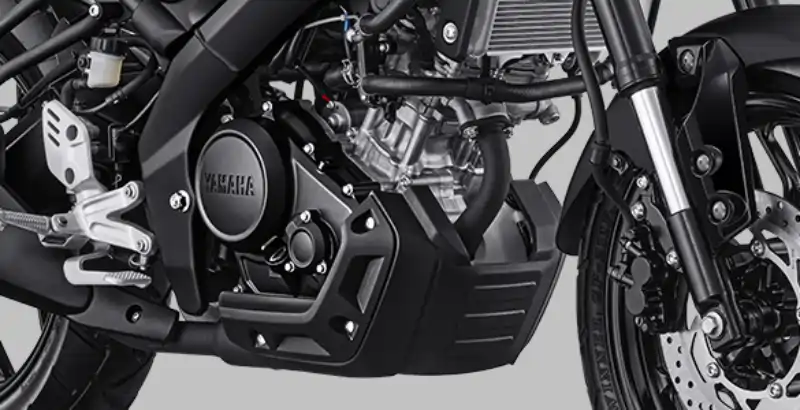

155cc LC4V With VVA Engine
155cc engine, liquid cooled, SOHC, 4-valves, Fuel Injection with VVA. Powerful engine for an extraordinary riding sensation.

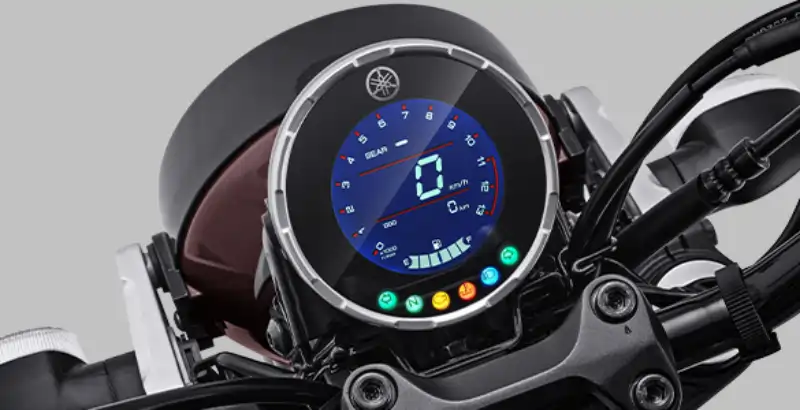

Full LCD Digital Speedometer
Classic design with full LCD screen equipped with transmission indicator.
Yamaha All New XSR 155 Feature

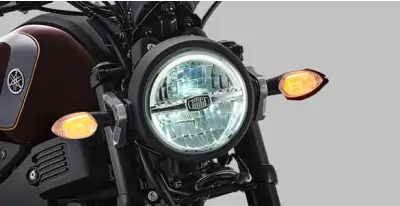

LED Head Light
Classic style lamp design with modern technology.

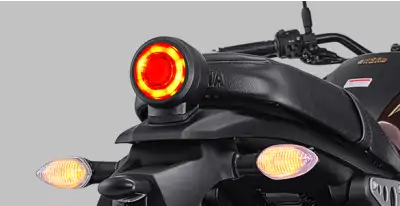

LED Tail Light
Classic style lamp design with modern technology.

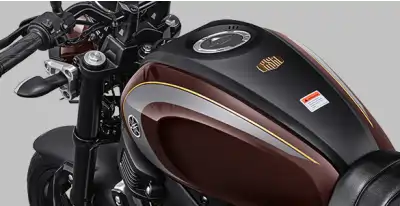

Timeless Quality Impression
The tank with a drip-shaped model gives a classic impression that is timeless.

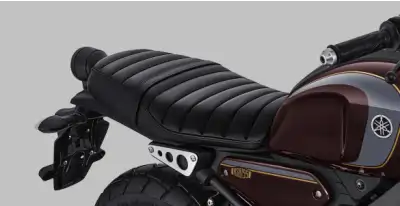

Single Seat Heritage
The classic seat design emphasizes the “Sport Heritage” character of the XSR 155.
Dual Purpose Tire
Ban dual purpose tubeless yang dirancang untuk berkendara dalam berbagai kondisi jalan.
Yamaha All New XSR 155 Specification
| Engine | |
|---|---|
| Engine Type | Air cooled 4-Stroke SOHC, 4 Valve, VVA |
| Cylinder | Single Cylinder |
| Volume Cylinder | 155.09 cc |
| Bore × Stroke | 58,0 x 58,7 mm |
| Compression Ratio | 11,6 : 1 |
| Max. Power | 14,2 kW / 10.000 rpm |
| Max. Torque | 14,7 Nm / 8,500 rpm |
| Starter System | Eletric Starter |
| Lubricant System | Wet Sump |
| Oil Capacity | 1,05L (Total); 0,85L (Berkala); 0,95L (Chanage Filter Oil) |
| Fuel System | Fuel Injection |
| Clucth System | Wet Multi-Plate Type, Assist & Slipper Clutch |
| Transmission Type | Manual |
| Transmission System | 1-N-2-3-4-5-6 |
| Frame & Footer | |
|---|---|
| Frame Type | Deltabox |
| Front Suspension Type | Telescopic Fork (Inverted) |
| Rear Suspension Type | Link Monoshock |
| Front Tires | 110/70-17M/C (54S) |
| Rear Tire | 140/70-17M/C (66S) |
| Front Brake | Disc Brake |
| Rear Brake | Disc Brake |
| Dimension | |
|---|---|
| Dimension | 2007 X 804 X 1080 |
| Wheelbase | 1330 mm |
| Ground clearance | 170 mm |
| Seat Height | 810 mm |
| Curb weight | 134 Kg |
| Fuel Capacity | 10,4 L |
| Electricity System | |
|---|---|
| Battery | GTZ4V/YTZ4V (All New R15) |
| YTZ6V (All New R15M) | |
| Spark Plug | NGK/LMAR8A-9 |
| Ignition System | TCI |
