YAMAHA JUPITER Z1
Fuel Injection Yamaha
Yamaha injection technology makes the engine more powerful and fuel efficient.
Forged Piston
Yamaha technology that makes the engine more durable and stronger.
Yamaha Jupiter Z1
Double Head Lamp
Futuristic double lamp that provides maximum lighting.
Arrow Tail Shaped Light
Design lampu belakang yang aerodinamis dan futuristik.
New Striping Design
Striping bergaya racing memberikan kesan Sporty.

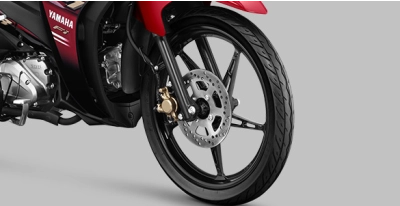

Sporty Casting WheelSPORTY CASTING WHEEL
Velg dengan striping yang Sporty.
Aerodynamic Air Flow
Memberikan sirkulasi udara pada mesin agar tetap pada suhu optimal.
Yamaha Jupiter Z1 Specification
| Engine | |
|---|---|
| Engine Type | Air cooled 4-stroke, SOHC |
| Cylinder | Single Cylinder/ Horizontal |
| Bore × Stroke | 50,0 x 57,9 mm |
| Compression Ratio | 9,3 : 1 |
| Max. Power | 7,4 kW / 7750 rpm |
| Max. Torque | 9,8 Nm / 6750 rpm |
| Starter System | Elektrik Starter & Kick Starter |
| Lubricant System | Wet Sump |
| Fuel System | Fuel Injection |
| Clucth System | Wet, Multiplate, Centrifugal automatic |
| Oil Capacity | Total = 1,00 L Periodic = 0,80 L ; Replace Oil Filter = 0,85 L |
| Transmission Type | Manual |
| Transmission | Constant mesh, 4-Speed |
| Frame & Footer | |
|---|---|
| Frame Type | Backbone |
| Front Suspension Type | Telescopic |
| Rear Suspension Type | Swing Arm |
| Front Tires | 70/90-17 M/C (38P) |
| Rear Tire | 80/90-17 M/C (44P) |
| Front Brake | Disk Brake |
| Rear Brake | Drum Brake |
| Dimension | |
|---|---|
| Dimension | 1935mm x 680mm x 1065mm |
| Wheelbase | 1240mm |
| Ground clearance | 150 mm |
| Seat Height | 765 mm |
| Curb weight | 101 kg (Spoke wheel) 102 kg (Cast wheel) |
| Fuel Capacity | 4,1 L |
| Engine | |
|---|---|
| Spark Plug Type | NGK/CR6HSA |
| Battery | YTZ4V/GTZ4V |
| Ignittion Sistem | TCI |
