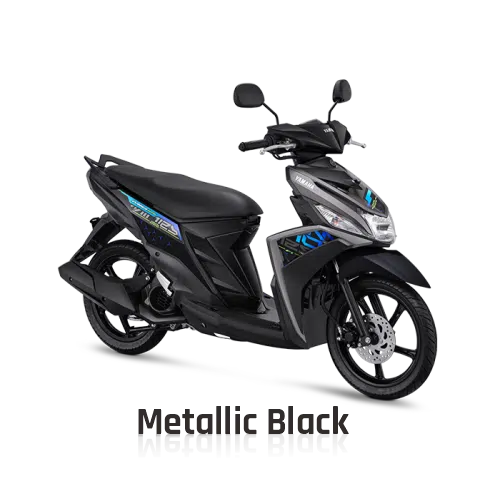

YAMAHA MIO M3 125
5 Years Warranty
5 Year/50,000 Km warranty covers Frame*, FI components, DiASil Cylinder & Forged Piston**. *Only valid for Yamaha matic motorcycles. **Conditions and conditions apply, see Service and Warranty Book.

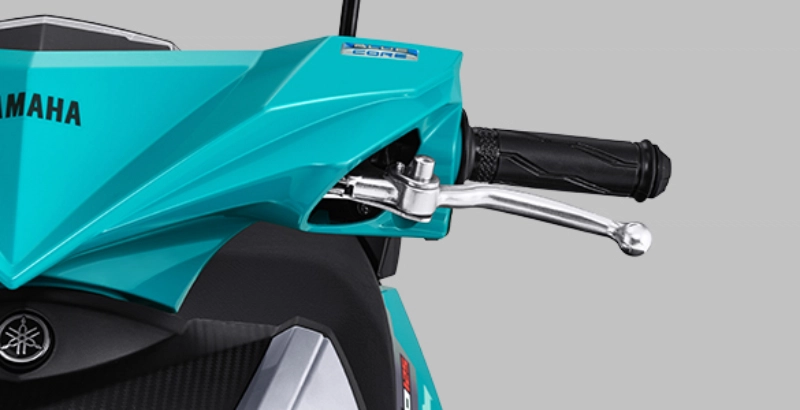

Smart Lock System
To lock the brakes when stopping on an incline or decline. Practical, just with one finger.
Yamaha Mio M3 125 Feature

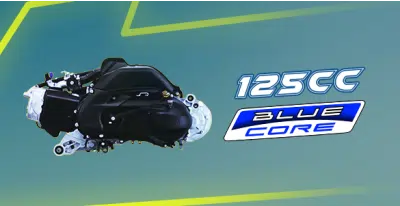

Blue Core
Efficient, Powerful and Reliable 125cc Blue Core Engine.

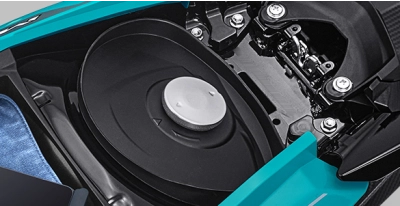

4.2 L Tank
Large fuel tank capacity.
Smart Stand Side Switch
More informative to prevent riders from forgetting to raise the side stand when the motorbike is parked.
Slim Body Design
A slim body will facilitate your daily mobility.

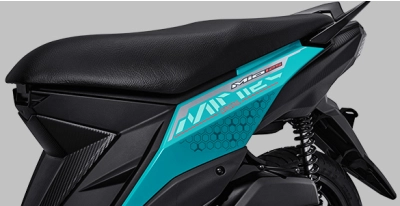

Body Striping Trend
New striping with a sporty and dynamic feel makes your style even trendier.

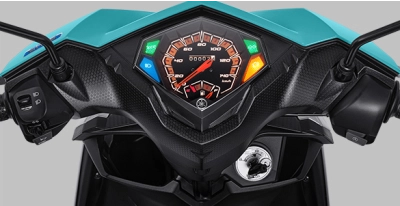

Trendy Speedometer
New speedometer design that looks more trendy.

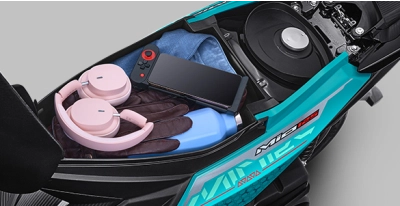

Spacious and Roomy Luggage
Spacious and roomy luggage is suitable for your day full of activities.
Multifunction Key
1 key with 3 functions to start the motorbike, lock the motorbike, and open the trunk.
Eco Indicator
Economical indicator for more economical driving.
Yamaha Mio M3 125 Specification
| Engine | |
|---|---|
| Engine Type | Air cooled 4-stroke, SOHC |
| Cylinder | Single Cylinder |
| Bore × Stroke | 52,4 x 57,9 mm |
| Compression Ratio | 9,5 : 1 |
| Volume Cylinder | 125 cc |
| Max. Power | 7,0 kW / 8000 rpm |
| Max. Torque | 9,6 Nm/ 5500 rpm |
| Starter System | Eletric Starter & Kick Starter |
| Lubricant System | Wet Sump |
| Oil Capacity | Total : 0.84 L ; Periodic : 0,80 L |
| Fuel System | Fuel Injection |
| Clucth System | Dry, Centrifugal Automatic |
| Transmission System | V-Belt Automatic |
| Frame & Footer | |
|---|---|
| Frame Type | Underbone |
| Front Suspension Type | Telescopic |
| Rear Suspension Type | Unit Swing |
| Front Tires | 70/90-14M/C (34P) |
| Rear Tire | 80/90-14M/C (40P) |
| Front Brake | Disc Brake |
| Rear Brake | Drum Brake |
| Dimension | |
|---|---|
| Dimension | 1870mm X 685mm X 1035mm |
| Wheelbase | 1260 mm |
| Ground clearance | 135 mm |
| Seat Height | 750 mm |
| Curb weight | 92 kg |
| Fuel Capacity | 4,2 L |
| Electricity System | |
|---|---|
| Battery | YTZ4V / GTZ4V |
| Spark Plug | NGK / CR6HSA |
| Ignition System | TCI |
