YAMAHA VEGA FORCE

Fuel Injection Yamaha

Yamaha legendary engine with FI and Euro 3 technology, EFFICIENT. 114 CC engine capacity with Forged Piston makes it more POWERFUL and POWERFUL.

Safety Key

Starter key equipped with safety and cover button.

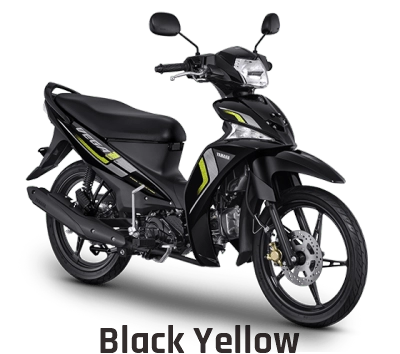

Yamaha Vega Force

Yamaha Jupiter Z1 Specification

Engine
Engine Type4 Stroke, SOHC, Air Cooled
CylinderSingle Cylinder/ Horizontal
Bore × Stroke50,0 x 57,9 mm
Compression Ratio9,3 : 1
Max. Power6,41 kW / 7000 rpm
Max. Torque9,53 Nm / 5500 rpm
Starter SystemElektrik Starter & Kick Starter
Lubricant SystemWet Sump
Fuel SystemFuel Injection
Clucth SystemWet, Multiplate, Centrifugal automatic
Oil CapacityTotal = 1,00 L
Periodic = 0,80 L
Replace Oil Filter = 0,85 L
Transmission TypeManual
TransmissionConstant mesh, 4-Speed
Frame & Footer
Frame TypeBackbone
Front Suspension Type Telescopic
Rear Suspension TypeSwing Arm
Front Tires70/90-17MC 38P (CW+Fr.Disc Brake)

70/90-17MC 38L (SW+Fr.Disc Brake)
Rear Tire80/90-17MC 44P (CW+Fr.Disc Brake)

80/90-17MC 44L (SW+Fr.Disc Brake)
Front BrakeDisk Brake
Rear Brake Drum Brake
Dimension
Dimension1940 x 715 x 1075mm (CW/SW+Fr.Disc Brake)
Wheelbase1235mm
Ground clearance155 mm
Seat Height775 mm
Curb weight96 kg
Fuel Capacity4 L
Engine
Spark Plug TypeNGK/CR6HSA
Battery YTZ4V/GTZ4V
Ignittion SistemTCI
